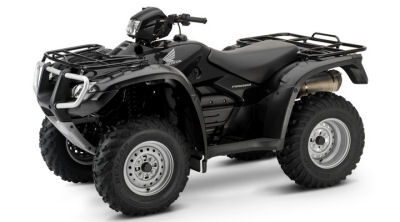

Honda FourTrax Foreman 4x4 2007 specs
Below are some specifications of the Honda FourTrax Foreman 4x4 2007 model
ATV Type : Utility Quad Bikes
Model ID : TRX500FM7
Engine - Engine Detail : 475cc air-cooled OHV longitudinally mounted single-cylinder four-stroke
- Engine Capacity : 475 cc
- Valve Spec : OHV
- Type : four-stroke
- Cooling : air-cooled
- No of Cylinders : longitudinally mounted single-cylinder
- Bore / Stroke : 92.0mm x 71.5mm
- Ignition : CD with electronic advance, Electric with auxiliary recoil
Gearbox - Transmission : Automatic - Five-speed with reverse
- Final Drive : Direct front and rear drive-shafts with TraxLok and torque-sensitive front differential
Dimensions and Weight - Length (Inches) : 83 in
- Width (Inches) : 46.8 in
- Height (Inches) : 46.5 in
- Seat Height (Inches) : 33.9 in
- Ground Clearance (Inches) : 7.5 in
- Wheelbase (Inches) : 50.7 in
- Dry Weight (Lbs) : 594 lb
- Length (mm) : 2108mm
- Width (mm) : 1189mm
- Height (mm) : 1181mm
- Seat Height (mm) : 861mm
- Ground Clearance (mm) : 191mm
- Wheelbase (mm) : 1288mm
- Dry Weight (Kg) : 269.43 kg
Suspension, Brakes and Tires - Suspension - Front : Independent double-wishbone with 6.7-inch travel
- Suspension - Rear : Swingarm with dual shocks with 6.7-inch travel
- Brakes - Front : Dual hydraulic 180mm disc
- Brakes - Rear : Sealed 180mm mechanical drum
- Tires - Front : 25 x 8-12
- Tires - Rear : 25 x 10-12
Available Colors - Colors : Olive, Black, Red, Camo
Warranty - Warranty Info : 6 months Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
|
