2025 Honda FourTrax Foreman 4x4 ATV Specs South Africa

2025 Honda FourTrax Foreman 4x4 specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

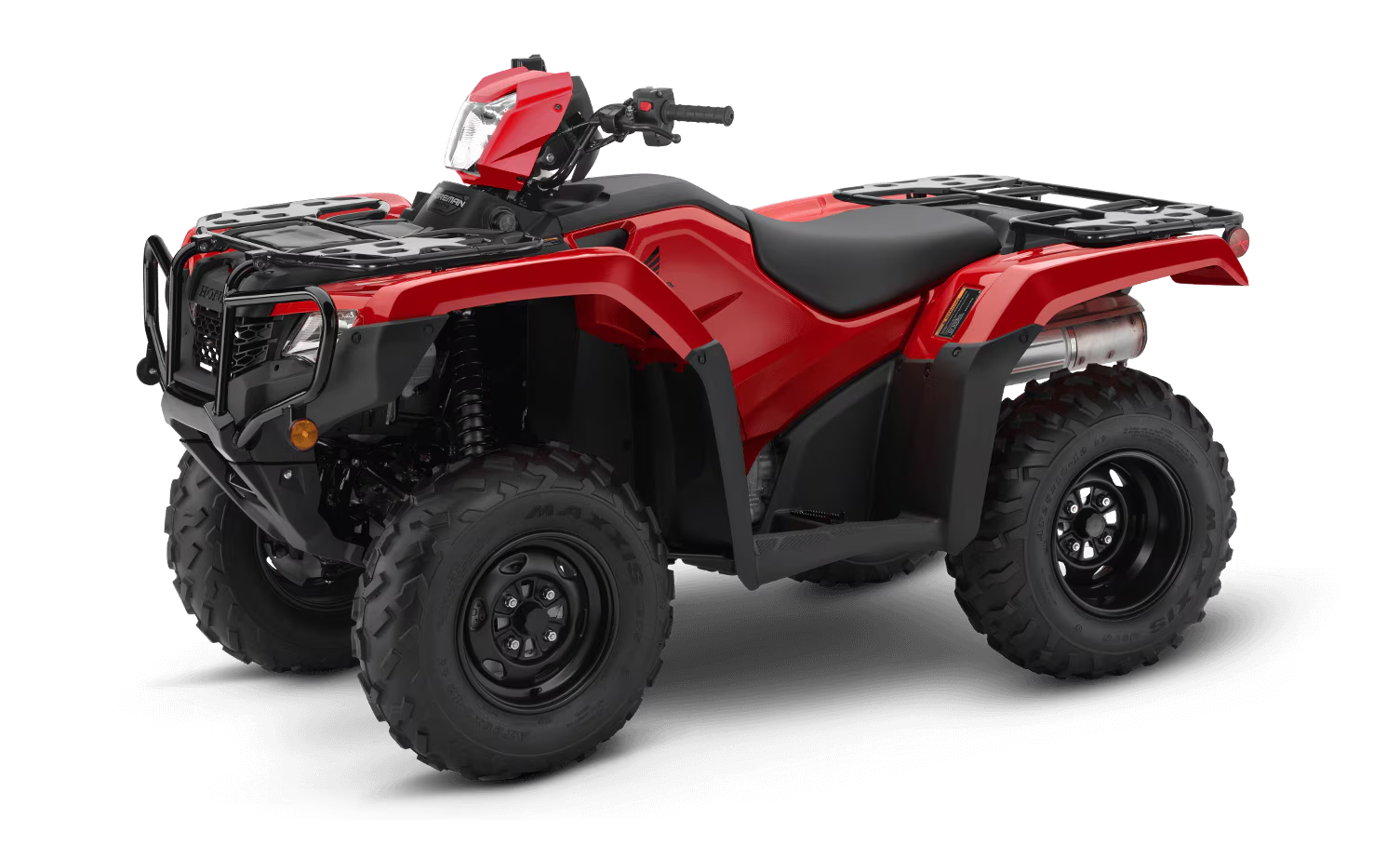

Honda FourTrax Foreman 4x4

Honda FourTrax Foreman 4x4 2025

Make

Honda

Model

FourTrax

Year

2025

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 518 / 31.6

Engine Valves: OHV

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 96.0mm x 71.5mm

Bore Stroke(in): 3.78in. x 2.81in.

Compression Ratio: 9.5:1

Fuel System: PGM-FI fuel injection

Fuel Type: Petrol

Ignition: CDI Electronic

Brakes

Brakes Front: Dual hydraulic disc brakes

Front Brake Diameter (mm / in.): 190 / 7.5

Brakes Rear: Sealed mechanical drum brake

Suspension

Front Suspension: Independent double wishbone coil spring oil damped

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 185 / 7.3

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock coil spring oil damped

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 185 / 7.3

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 2106 / 82.9

Width (mm / in.): 1204 / 47.4

Height (mm / in.): 1219 / 48.0

Ground Clearance (mm / in.): 190 / 7.5

Wheelbase (mm / in.): 1269 / 50.0

Dry Weight (Kg / Lbs.): 286 / 630

Transmission (Gearbox) and Final Drive

Transmission: 5-speed manual with reverse

Transmission Make: Honda

Final Drive: Shaft

Drive line Modes: 2WD 4WD

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front Differential Lock

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tube / Tubeless: Tubeless

Tires Front: 25 x 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 25 x 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 13.2 / 3.5

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 850 / 33.5

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Instrumentation

Digital Instrumentation: Standard

Trip Computer: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: Standard

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Honda

Warranty Info: 12-month limited warranty
