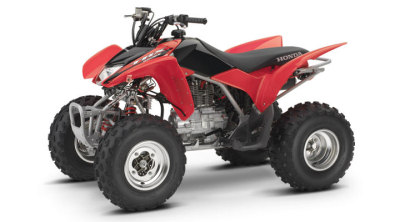

Honda SportTrax TRX250EX 2007 specs
Below are some specifications of the Honda SportTrax TRX250EX 2007 model
ATV Type : Racing Quad Bikes
Model ID : TRX250EX7
Engine - Engine Detail : 229cc air-cooled OHV longitudinally mounted single-cylinder four-stroke
- Engine Capacity : 229 cc
- Valve Spec : OHV
- Type : four-stroke
- Cooling : air-cooled
- No of Cylinders : longitudinally mounted single-cylinder
- Bore / Stroke : 68.5mm x 62.2mm
- Ignition : CD with electronic advance
Gearbox - Transmission : Honda SportClutch - Five-speed with reverse
- Final Drive : Direct rear drive-shaft
Fuel - Fuel System : 22mm piston-valve
- Fuel Tank Capacity (Gal) : 2.7 gal.
- Fuel Tank Capacity (Liters) : 10.22 liters
Dimensions and Weight - Length (Inches) : 68.5 in
- Width (Inches) : 41.8 in
- Height (Inches) : 42.4 in
- Seat Height (Inches) : 31.4 in
- Ground Clearance (Inches) : 5.9 in
- Wheelbase (Inches) : 44.3 in
- Dry Weight (Lbs) : 360 lb
- Length (mm) : 1740mm
- Width (mm) : 1062mm
- Height (mm) : 1077mm
- Seat Height (mm) : 798mm
- Ground Clearance (mm) : 150mm
- Wheelbase (mm) : 1125mm
- Dry Weight (Kg) : 163.29 kg
Suspension, Brakes and Tires - Suspension - Front : Independent double-wishbone with 5.9-inch travel
- Suspension - Rear : Swingarm with single shock with 5.7-inch travel
- Brakes - Front : Dual hydraulic 174mm discs
- Brakes - Rear : Sealed mechanical drum
- Tires - Front : 22 x 7-10 knobby
- Tires - Rear : 22 x 10-9 knobby
Available Colors Warranty - Warranty Info : 6 months Transferable, limited warranty; extended coverage available with a Honda Protection Plan.
|
