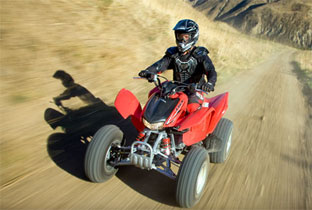

Honda SportTrax TRX300X 2009 specs
Below are some specifications of the Honda SportTrax TRX300X 2009 model
ATV Type : Racing Quad Bikes
Model ID : TRX300X
Engine - Engine Detail : 282cc air-cooled SOHC single-cylinder four-stroke
- Engine Capacity : 282 cc
- Valve Spec : SOHC
- Type : four-stroke
- Cooling : air-cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 74mm x 65.5mm
- Ignition : CD with electronic advance
Gearbox - Transmission : Manual, Five-speed with reverse
- Final Drive : O-ring-sealed chain
Fuel - Fuel System : 32mm piston-valve with accelerator pump carburetor
- Fuel Tank Capacity (Gal) : 2.2 gal.
- Fuel Tank Capacity (Liters) : 8.33 liters
Dimensions and Weight - Length (Inches) : 67.7 in
- Width (Inches) : 43.5 in
- Height (Inches) : 41.8 in
- Seat Height (Inches) : 30.5 in
- Ground Clearance (Inches) : 4.6 in
- Wheelbase (Inches) : 45 in
- Dry Weight (Lbs) : 388 lb
- Length (mm) : 1720mm
- Width (mm) : 1105mm
- Height (mm) : 1062mm
- Seat Height (mm) : 775mm
- Ground Clearance (mm) : 117mm
- Wheelbase (mm) : 1143mm
- Dry Weight (Kg) : 176 kg
Suspension, Brakes and Tires - Suspension - Front : Independent double-wishbone with dual hydraulic shocks; five-position spring preload adjustability; 7.1 inches travel
- Suspension - Rear : Swingarm with single shock; five-position spring preload adjustability; 7.9 inches travel
- Brakes - Front : Dual hydraulic disc
- Brakes - Rear : Single hydraulic disc
- Tires - Front : 22 x 7-10 knobby
- Tires - Rear : 22 x 10-9 knobby
Available Colors Warranty - Warranty Info : 1 year, Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan
|
