2007 Kawasaki ATV & Quad Bike Specs

Engine Spec

Engine Detail: 228cc, Air-cooled, four-stroke, single cylinder

Engine Capacity (cc / Ci ): 228 cc / 13.91

Engine Valves: SOHC

Valve Configuration: 2-valve

Total Valves: 2

Engine Type: four-stroke

Engine Cooling: Air-cooled

Engine Cylinders: single cylinder

Engine Braking: K-EBC

Displacement To Weight CC: 0.56

Bore Stroke(mm): 69.0mm x 61.0mm

Bore Stroke(in): 2.72in. x 2.4 in.

Compression Ratio: 8.9:1

Fuel System: Mikuni VM24SS

Fuel System Brand: Mikuni

Carburetor Size MM: 24

Carborator Count: 1

Fuel Type: Petrol

Ignition: Solid state with electronic ignition backup

Brakes

Brakes Front: Dual drums

Brakes Rear: Drum

Suspension

Front Suspension: Single A-arm, independent with 4.5 in. travel

Suspension - Front Travel (mm / in.): 114 / 4.5

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Semi-independent Quad-Link with dual shocks with 4.5 in. travel

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 114 / 4.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1781 / 70.1

Width (mm / in.): 1021 / 40.2

Height (mm / in.): 1038.9 / 40.9

Ground Clearance (mm / in.): 154.9 / 6.1

Wheelbase (mm / in.): 1115.1 / 43.9

Dry Weight (Kg / Lbs.): 183.3 / 404

Wet Weight (Lbs. / Kg): 426 / 193

Transmission (Gearbox) and Final Drive

Transmission: Five-speed-plus reverse with automatic clutch

Final Drive: Shaft

Final Drive Ratio: 4.68

Drive line Modes: 1

Primary Drive - Rear Wheels: Shaft

Hi / Low Range: No

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: AT21x8-9 tubeless

Front Tire Diameter (in): 21

Front Tire Width (in): 8

Front Rim Diameter (in): 9

Tires Rear: AT22x10-10 tubeless

Rear Tire Diameter (in): 22

Rear Tire Width (in): 10

Rear Rim Diameter (in): 10

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 9.84 / 2.6

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 66 / 44

Payload Capacity (Kg / Lbs.): 130 / 286.6

Storage

Storage Capacity (Kg / Lbs.): 20 / 44

Seats

Seat Height (mm / in.): 729 / 28.7

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Towing Capacity (Kg / Lbs.): 204.1 / 450

Instrumentation

Instumentation: Neutral indicator, reverse indicator

Fuel Level Warning Type: Gauge

Lighting

Lighting: 30W x 2 halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Woodsman Green, Polar White or Sunbeam Red

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Brush Guard: No

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Kawasaki

Warranty Info: Good Times™ Protection Plan 12, 24, 36 or 48 months - Warranty 12 Months

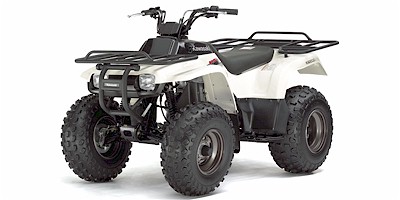

2007 Kawasaki Bayou 250 ATV Specs South Africa
