2006 Yamaha ATV & Quad Bike Specs

Engine Spec

Engine Detail: 660cc, 4-Stroke Single, Liquid Cooled w/ Fan, 5-Valve SOHC

Engine Capacity (cc / Ci ): 660 cc / 40.28

Engine Valves: 5-Valve SOHC

Valve Configuration: 5-Valve

Total Valves: 5

Engine Type: 4-Stroke

Engine Cooling: Liquid Cooled with Fan

Engine Cylinders: Single

Engine Braking: All Wheel

Displacement To Weight CC: 1.1

Bore Stroke(mm): 100 mm x 84 mm

Bore Stroke(in): 3.94in. x 3.31in.

Compression Ratio: 9.1:1

Fuel System: Mikuni 42mm BSR

Fuel System Brand: Mikuni

Carburetor Size MM: 42

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric DC – CDI with Auxiliary pull

Speed Governor: No

Brakes

Brakes Front: Dual Hydraulic Discs

Brakes Rear: Hydraulic Disc, Four Piston, Shaft Mounted

Suspension

Front Suspension: Independent Double Wishbone, 7.1in with 5-way Preload Adjustment

Suspension - Front Travel (mm / in.): 180 / 7.1

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: ependent Double Wishbone, 9.5 in with 5-way Preload Adjustment

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 241 / 9.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2085 / 82.1

Width (mm / in.): 1151 / 45.3

Height (mm / in.): 1209 / 47.6

Ground Clearance (mm / in.): 299.7 / 11.8

Wheelbase (mm / in.): 1275.1 / 50.2

Dry Weight (Kg / Lbs.): 272.2 / 600

Tongue Weight (lbs/kgs): 1212 / 549.8

Transmission (Gearbox) and Final Drive

Transmission: Yamaha Ultramatic® V-Belt with Hi,Lo,Neutral,Reverse and Park

Transmission Make: Yamaha UltraMatic

Final Drive: Yamaha On-Command® push button 3-way locking differential, 2WD, 4WD, locked 4WD; Shaft

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Driveline Make: On-Command

Limited Slip Diff Location: Front

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tires Front: AT25 x 8-12 with Aluminum Wheels

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: AT25 x 10-12 with Aluminum Wheels

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 20.06 / 5.3

Racks and Payload

Rack Capacity Front (Kg / Lbs.): Unknown / 99

Rack Capacity Rear (Kg / Lbs.): Unknown / 187

Rack Rails Location: Rear

Storage

Storage Capacity (Kg / Lbs.): 44.9 / 99

Underseat Storage: Standard

Seats

Seat Height (mm / in.): 878.8 / 34.6

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Towing Capacity (Kg / Lbs.): 549.8 / 1212

Instrumentation

Instumentation: Digital LCD Multi-function display. Speedo, Odometer, Dual Trip, Hour, Clock, Fuel, & Gear Position

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Dual 30W Krypton Multi-reflector Headlights & 21/5W Brake light

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Hardwoods HD Camo, Hunter Green

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: Yes

CV Boot Cover: Yes

Decal Kit: Standard

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Gun Scabbard: Standard

Gun Scabbard Mount: Standard

Hand Grips: Standard

Power Outlet: Standard

Radiator Guard: No

Rear Fender: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Turning Circle: 10.5

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Yamaha

Warranty Info: 6 Month (Limited Factory Warranty)

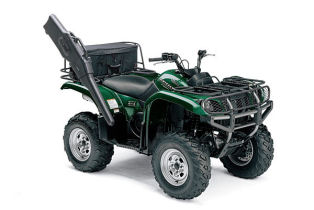

2006 Yamaha Grizzly 660 4x4 Automatic Outdoorsman Edition ATV Specs South Africa

Yamaha Grizzly 660 4x4 Automatic Outdoorsman Edition 2006
