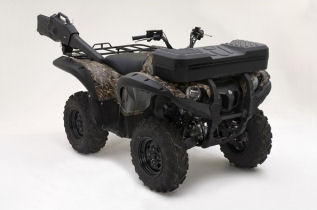

Yamaha Grizzly 700 FI 4x4 Automatic Ducks Unlimited Edition 2007 specs
Below are some specifications of the Yamaha Grizzly 700 FI 4x4 Automatic Ducks Unlimited Edition 2007 model
ATV Type : Utility Quad Bikes
Engine - Engine Detail : 686cc liquid-cooled w/fan, SOHC four-stroke single; 4-valve
- Engine Capacity : 686cc
- Valve Spec : SOHC
- Type : four-stroke
- Cooling : liquid-cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 102.0 x 84.0mm
- Compression Ratio : 9.2:1
- Lubrication : Wet sump
- Ignition : 32 Bit ECU
Gearbox - Transmission : Yamaha Ultramatic® V-belt/H, L, N, R, P,Yamaha On-Command® pushbutton 3-way locking differential, 2WD, 4WD, locked 4WD;
- Final Drive : Drive Shaft
Fuel - Fuel System : Yamaha Fuel Injection (YFI), 44mm
- Fuel Tank Capacity (Gal) : 5.3
- Fuel Tank Capacity (Liters) : 20
Dimensions and Weight - Length (Inches) : 81.3
- Width (Inches) : 46.5
- Height (Inches) : 48.8
- Seat Height (Inches) : 35.6
- Ground Clearance (Inches) : 11.8
- Wheelbase (Inches) : 49.2
- Dry Weight (Lbs) : 600
- Length (mm) : 2065
- Width (mm) : 1180
- Height (mm) : 1240
- Seat Height (mm) : 905
- Ground Clearance (mm) : 275
- Wheelbase (mm) : 1250
- Dry Weight (Kg) : 274
Suspension, Brakes and Tires - Engine Braking : All wheel
- Suspension - Front : Independent double wishbone, 7.1†travel w/5-way preload adjustment
- Suspension - Rear : Independent double wishbone, 9.5†travel w/5-way preload adjustment
- Brakes - Front : Dual hydraulic disc
- Brakes - Rear : Dual hydraulic disc
- Tires - Front : AT 25 x 8-12 w/aluminum wheels
- Tires - Rear : AT 25 x 10-12 w/aluminum wheels
Carry Racks - Rack Capacity - Front (Lbs) : 99
- Rack Capacity - Front (Kg) : 45
- Rack Capacity - Rear (Lbs) : 187
- Rack Capacity - Rear (Kg) : 85
Towing Capacity - Towing Capacity (Lbs) : 1212
- Towing Capacity (Kg) : 550
Insrumentation and Lighting - Instumentation : Digital LCD multifunction display: speedometer, odometer, dual trip, hour meter, clock, fuel, gear position
- Lighting : Dual 35W Halogen multireflector headlights & 21/5W brake light
Available Colors - Colors : Advantage Max-4 (Camo)
|
