2019 Yamaha Kodiak 700 EPS SE ATV Specs South Africa

2019 Yamaha Kodiak 700 EPS SE specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

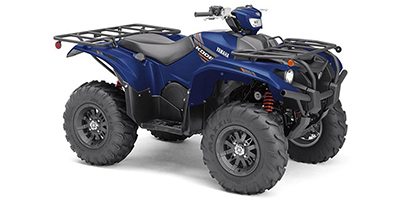

Yamaha Kodiak 700 EPS SE

Yamaha Kodiak 700 EPS SE 2019

Make

Yamaha

Model

Kodiak

Year

2019

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 686 / 41.86

Engine Valves: SOHC

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Engine Braking: Standard

Bore Stroke(mm): 102mm x 84mm

Bore Stroke(in): 4.02in. x 3.31in.

Compression Ratio: 10.0:1

Fuel System: Fuel Injected

Carborator Count: 0

Fuel Injector Size MM: 44

Fuel Type: Petrol

Ignition: Electric

Kill Switch Tether Cord: Standard

Speed Governor: No

Brakes

Brakes Front: Dual Hydraulic Disc

Brakes Rear: Sealed Oil Bath Multi-Disc

Suspension

Front Suspension: Independent Double Wishbone

Suspension - Front Travel (mm / in.): 193 / 7.6

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Independent Double Wishbone

Suspension Rear - Material: Steel

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 231 / 9.1

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2070 / 81.48

Width (mm / in.): 1181 / 46.5

Height (mm / in.): 1240 / 48.8

Ground Clearance (mm / in.): 287 / 11.3

Wheelbase (mm / in.): 1250 / 49.2

Wet Weight (Lbs. / Kg): 686 / 311.2

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Transmission Make: UltraMatic

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Driveline Make: On-Command

Limited Slip Diff Location: Front

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tube / Tubeless: Tubeless

Tires Front: Maxxis AT25 x 8 - 12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: Maxxis AT25 x 10 - 12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 18.2 / 4.8

Storage

Storage Capacity (Kg / Lbs.): 49.9 / 110

Glove Box / Dashboard Storage: Standard

Seats

Seat Height (mm / in.): 861 / 33.9

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Tow Hook: Standard

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 599.7 / 1322

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Fog Lights: Standard

Headlights: Standard

Halogen Headlights: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: Yes

CV Boot Cover: Yes

Decal Kit: Standard

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Radiator Guard: No

Rear Fender: Standard

Rear Stabilizer Bar: Yes

Shock Cover: No

Steering

Steering Type: Power

Steering Make: Electronic Power Steering (EPS)

Turning Circle: 10.5

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Yamaha
