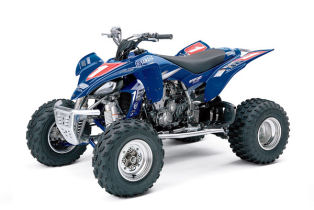

Yamaha YFZ450 Bill Ballance Edition 2006 specs
Below are some specifications of the Yamaha YFZ450 Bill Ballance Edition 2006 model

ATV Type : Racing Quad Bikes
Model ID : YFZ450
Engine - Engine Detail : 449cc liquid cooled w/fan, DOHC 4-stroke single; 5 titanium valves
- Engine Capacity : 449 cc
- Valve Spec : 5 titanium valves
- Type : 4-stroke
- Cooling : liquid cooled w/fan
- No of Cylinders : single
- Bore / Stroke : 95 mm x 63.4 mm
- Compression Ratio : 11.4:1
- Ignition : Electric DC - CDI
Gearbox - Transmission : 5-speed manual clutch
- Final Drive : 2WD; sealed o-ring chain, eccentric adjustment
Fuel - Fuel System : Keihin 39mm FCR w/throttle position sensor
- Fuel Tank Capacity (Gal) : 2.6 gal.
- Fuel Tank Capacity (Liters) : 9.84 liters
Dimensions and Weight - Length (Inches) : 72.4 in
- Width (Inches) : 46.1 in
- Height (Inches) : 42.9 in
- Seat Height (Inches) : 31.9 in
- Ground Clearance (Inches) : 4.4 in
- Wheelbase (Inches) : 50.4 in
- Dry Weight (Lbs) : 350 lb
- Length (mm) : 1839mm
- Width (mm) : 1171mm
- Height (mm) : 1090mm
- Seat Height (mm) : 810mm
- Ground Clearance (mm) : 112mm
- Wheelbase (mm) : 1280mm
- Dry Weight (Kg) : 158.75 kg
Suspension, Brakes and Tires - Suspension - Front : Independent double wishbone, 9.1 in travel; adjust. for compression, rebound and spring preload
- Suspension - Rear : Aluminum swingarm, 10.6 intravel; adjust. for compression, rebound and spring preload
- Brakes - Front : Dual hydraulic discs, twin pistons
- Brakes - Rear : Hydraulic disc, twin pistons
- Tires - Front : AT21 x 7-10 radial
- Tires - Rear : AT20 x 10-9 radial
Instrumentation and Lighting - Lighting : Dual 30W Krypton multireflecter headlights and 3.9/0.5W brake light
Available Colors - Colors : Team Yamaha Blue/White
Warranty - Warranty Info : 6 Month (Limited Factory Warranty)
|
