Yamaha Grizzly 660 4x4 2006 specs
|
|
Yamaha Grizzly 660 4x4 2006 specs

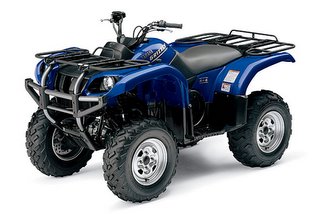

Below are some specifications of the Grizzly 660 4x4 ATV also known as the
YFM660.

Engine
-
Type:
660cc, 4-Stroke Single, Liquid Cooled w/ Fan, 5-Valve SOHC
-
Bore x Stroke:
100mm x 84mm
-
Compression Ratio:
9.1:1 Carburetion Mikuni 42mm BSR
-
Ignition:
DC – CDI
-
Starting System:
Electric w/ Auxiliary pull
-
Transmission:
Yamaha Ultramatic® V-Belt with Hi,Lo,Neut.,Rev.,Park
-
Engine Braking:
All Wheel
-
Drive Train: Yamaha On-Command® push button 3-way locking
differential, 2WD, 4WD, locked 4WD; Shaft
Chassis
-
Suspension/Front: Independent Double Wishbone, 7.1” w/ 5-way Preload Adjustment
-
Suspension/Rear: Independent Double Wishbone, 9.5” w/ 5-way Preload Adjustment
-
Brakes/Front: Dual Hydraulic Discs
-
Brakes/Rear: Hydraulic Disc, Four Piston, Shaft Mounted
-
Tires/Front: AT25 x 8-12 w/ Aluminum Wheels
-
Tires/Rear: AT25 x 10-12 w/ Aluminum Wheels
Dimensions
-
L x W x H:
82.1” x 45.3” x 47.6”
-
Seat Height:
34.6”
-
Wheelbase:
50.2”
-
Turning Radius:
126”
-
Ground Clearance:
11.8”
-
Fuel Capacity:
5.3 Gallons
-
Dry Weight:
600 Lbs.
-
Rack Capacity:
99 Lbs.Fr. / 187 Lbs.Rr.
-
Towing Capacity: 1,212 Lbs.
Other
-
Instrumentation:
Digital LCD Multi-function display. Speedo, Odometer, Dual Trip, Hour, Clock,
Fuel, & Gear Position
-
Lighting:
Dual 30W Krypton Multi-reflector Headlights & 21/5W Brake light
-
DC Outlet:
Standard
-
Warranty: 6 Month (Limited Factory Warranty)
