2006 Polaris ATV & Quad Bike Specs

Engine Spec

Engine Detail: 683cc, 4-stroke, Liquid-Cooled

Engine Capacity (cc / Ci ): 683 cc / 41.7

Engine Valves: OHV

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-stroke

Engine Cooling: Liquid-Cooled

Engine Cylinders: single-cylinder

Engine Braking: Standard

Engine Make: Liberty

Displacement To Weight CC: 0.9

Bore Stroke(mm): 80mm x 68mm

Bore Stroke(in): 3.15in. x 2.68 in.

Compression Ratio: 9.78:1

Fuel System: BST 34 mm Mikumi

Fuel System Brand: Mikuni

Carburetor Size MM: 34

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric

Brakes

Brakes Front: Single-lever hydraulic disc

Brakes Rear: Single-lever hydraulic disc with hydraulic rear foot brake

Suspension

Front Suspension: MacPherson strut with 20.8cm travel

Suspension - Front Travel (mm / in.): 208 / 8.2

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Fully independent, progressive rate with anti-roll bar, 24.1cm travel

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 241 / 9.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2108 / 83

Width (mm / in.): 1219 / 48

Height (mm / in.): 1219 / 48

Ground Clearance (mm / in.): 280 / 11.3

Wheelbase (mm / in.): 1289 / 50.8

Dry Weight (Kg / Lbs.): 342.9 / 756

GVWR (Kg / Lbs.): 563 / 1240

Tongue Weight (lbs/kgs): 150 / 68.2

Transmission (Gearbox) and Final Drive

Transmission: P/R/N/L/H Automatic PVT EBS (Engine Braking System)

Transmission Make: Polaris Variable Transmission (PVT)

Final Drive: Shaft

Drive line Modes: 2

Primary Drive - Rear Wheels: Shaft

Driveline Make: On-Demand

Limited Slip Diff Location: Rear

Diff Lock Location: Rear

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Polaris PXT

Tires Front: 26x8R12 PXT

Front Tire Diameter (in): 26

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 26x11R12 PXT

Rear Tire Diameter (in): 26

Rear Tire Width (in): 11

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 16.1 / 4

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 45.4 / Unknown

Rack Capacity Rear (Kg / Lbs.): 90.7 / Unknown

Storage

Storage Capacity (Kg / Lbs.): 45.4 / 100

Front Storage Well: Standard

Rear Storage Well: Standard

Seats

Seat Height (mm / in.): 864 / 34

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 680.4 / 1500

Instrumentation

Instumentation: Gauge Type : Digital , Speedometer / Odometer, Tachometer, Tripmeter , Hourmeter , High Beam Indicator , Gear Indicator , Fuel Gauge , Warning Lights : Hi Temp / Low Battery , Rear Work Lights ,DC Outlet

Digital Instrumentation: Standard

Trip Odometer: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Tachometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Green/Black; Black/Silver; Black/Sonic Blue

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Composite

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Steering

Steering Type: Manual

Turning Circle: (inside tire) 193cm

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Polaris

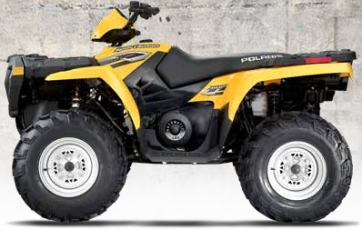

2006 Polaris Sportsman 700 Twin ATV Specs South Africa

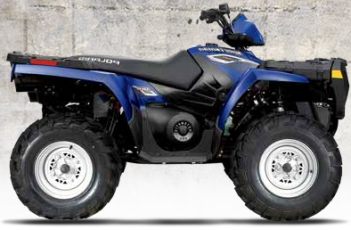

Polaris Sportsman 700 Twin 2006
