1999 Honda FourTrax 300 Specs - Engine, Dimensions & Performance (South Africa)

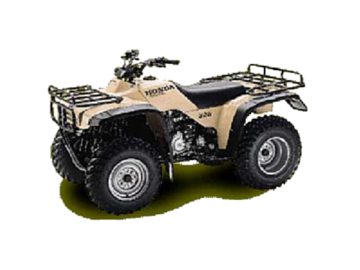

Honda FourTrax TRX300 1999

Make

Honda

Model

FourTrax

Year

1999

Type

Utility Quad Bikes

Add to side-by-side comparison (up to 4 quads)

Engine Spec

Engine Detail: 282cc, air cooled, single cylinder, 4-Stroke

Engine Capacity (cc / Ci ): 282cc / Unknown

Engine Type: 4-Stroke

Engine Cooling: Air-Cooled

Engine Cylinders: single cylinder

Bore Stroke(mm): 74mm x 65.5mm

Ignition: Solid state digital CD with electronic advance

Brakes

Brakes Front: Dual Hydraulic Drum

Brakes Rear: Drum

Suspension

Front Suspension: Double wishbone, 5.1

Suspension Rear: Swingarm with single shock, 5.1

Dimensions and Weight

Length (mm / in.): 1910 / 75.2

Width (mm / in.): 1158 / 45.6

Height (mm / in.): 1090 / 42.9

Ground Clearance (mm / in.): 218 / 8.6

Wheelbase (mm / in.): 1234 / 48.6

Dry Weight (Kg / Lbs.): 239 / 526.9

Tires and Rims

Tires Front: 23 x 8-11

Tires Rear: 24 x 9-11

Fuel

Fuel Tank Capacity (l / gal.): 12 / 3.3

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 30 / 66

Rack Capacity Rear (Kg / Lbs.): 60 / 132

Seats

Seat Height (mm / in.): 787 / 31.0

Towing

Towing Capacity (Kg / Lbs.): 386 / 850
