2007 Honda SportTrax TRX90EX Specs - Engine, Dimensions & Performance (South Africa)

2007 Honda SportTrax TRX90EX ATV quad bike specs

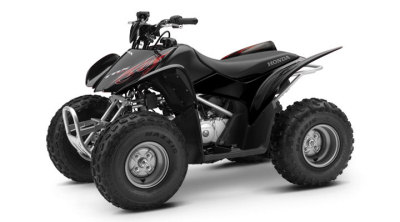

Honda SportTrax TRX90EX 2007

Make

Honda

Model

SportTrax

Year

2007

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 86cc air-cooled SOHC single-cylinder four-stroke

Engine Capacity (cc / Ci ): 86 cc / 5.2

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: four-stroke

Engine Cooling: air-cooled

Engine Cylinders: single-cylinder

Displacement To Weight CC: 0.34

Bore Stroke(mm): 47.0mm x 49.5mm

Bore Stroke(in): 1.85in. x 1.95 in.

Fuel System: 15mm piston-valve

Carburetor Size MM: 15

Carborator Count: 1

Fuel Type: Petrol

Ignition: CDI - Electric

Speed Governor: Yes

Brakes

Brakes Front: Dual sealed drum

Brakes Rear: Sealed drum

Suspension

Front Suspension: Independent suspension with 2.6-inch travel

Suspension - Front Travel (mm / in.): 66 / 2.6

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock with 2.6-inch travel

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 66 / 2.6

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1488 / 58.6

Width (mm / in.): 894 / 35.2

Height (mm / in.): 927 / 36.5

Ground Clearance (mm / in.): 99.1 / 3.9

Wheelbase (mm / in.): 983 / 38.7

Dry Weight (Kg / Lbs.): 113.9 / 251

Transmission (Gearbox) and Final Drive

Transmission: Automatic - Four-speed

Final Drive: O-ring-sealed chain

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Number Of Speeds: 4

Reverse: No

Tires and Rims

Tire Make: Maxxis®

Tires Front: 20 x 7-8

Front Tire Diameter (in): 20

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: 19 x 8-8

Rear Tire Diameter (in): 19

Rear Tire Width (in): 8

Rear Rim Diameter (in): 8

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 7.57 / 2.0

Fuel Tank Reserve (l / gal.): 1.1 / 0.3

Seats

Seat Height (mm / in.): 660.4 / 26

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Colours

Colors: Red, Black/Flame

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: No

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Rear Fender: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Turning Circle: 8.3 feet

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 12

Parent Company: Honda

Warranty Info: 6 months Transferable, limited warranty; extended coverage available with a Honda Protection Plan
