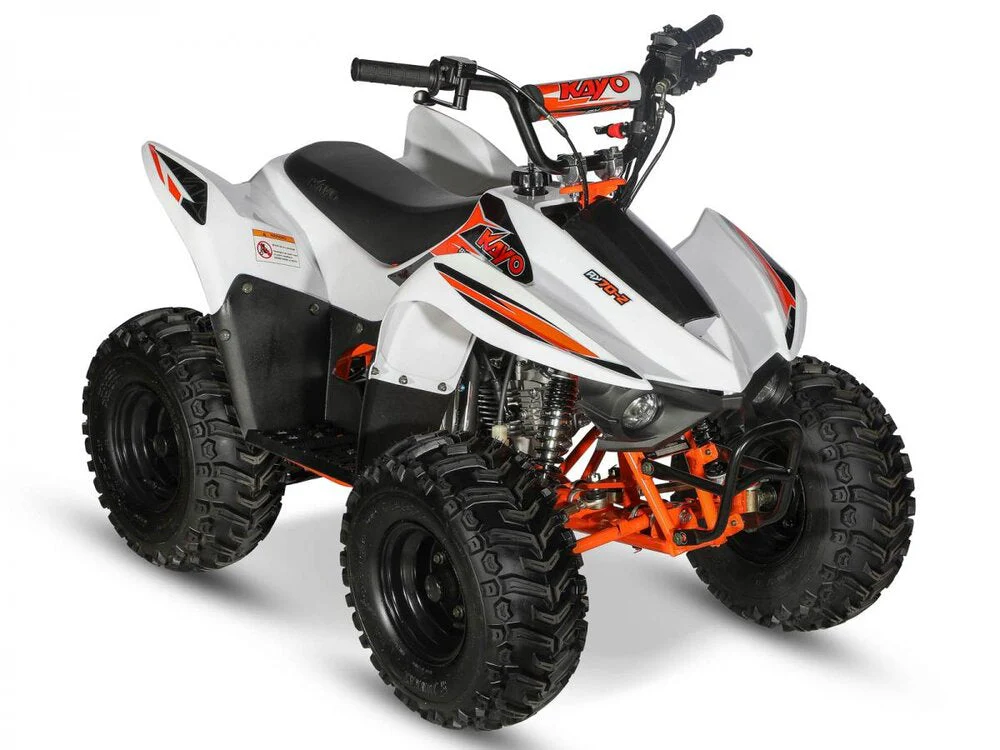

2025 KAYO AYAY 70 Specs - Engine, Dimensions & Performance (South Africa)

Engine Spec

Engine Capacity (cc / Ci ): 70 / 4.3

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 47.0mm x 41.4mm

Bore Stroke(in): 1.85in. x 1.63in.

Compression Ratio: 9.4:1

Fuel System: Carburetor

Fuel Type: Petrol

Ignition: CDI Electronic

Brakes

Brakes Front: Drum brakes

Brakes Rear: Drum brake

Suspension

Front Suspension: Independent double A-arm coil spring oil damped

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 140 / 5.5

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock coil spring oil damped

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 140 / 5.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 1405 / 55.3

Width (mm / in.): 900 / 35.4

Height (mm / in.): 708 / 27.9

Ground Clearance (mm / in.): 140 / 5.5

Wheelbase (mm / in.): 925 / 36.4

Dry Weight (Kg / Lbs.): 82 / 180

Transmission (Gearbox) and Final Drive

Transmission: Automatic V-belt with centrifugal clutch

Transmission Make: KAYO

Final Drive: Chain

Drive line Modes: 2WD

Primary Drive Engine / Transmission: Chain

Primary Drive - Front Wheels: NULL

Limited Slip Diff Location: NULL

Diff Lock Location: NULL

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubed

Tires Front: AT19 x 7-8

Front Tire Diameter (in): 19

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: AT19 x 7-8

Rear Tire Diameter (in): 19

Rear Tire Width (in): 7

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 2.0 / 0.5

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 650 / 25.6

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Digital Instrumentation: Standard

Trip Computer: No

Trip Odometer: No

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): No

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Light Guard: No

Radiator Guard: No

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Snorkel Air Intake: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: China

Recommend Minimum Age: 6

Parent Company: KAYO

Warranty Info: 12-month limited warranty
