2025 KAYO eA50 Electric ATV Specs South Africa

2025 KAYO eA50 Electric - Kids Quad Bikes. Full specs, photos & comparison.

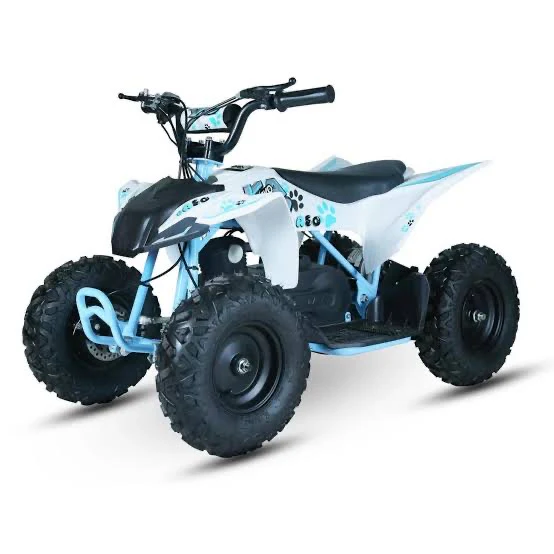

2025 KAYO eA50 Electric ATV quad bike specs

KAYO eA50 Electric 2025

Make

KAYO

Model

eA50

Year

2025

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): Electric / 48V

Engine Valves: N/A

Valve Configuration: N/A

Total Valves: 0

Engine Type: Electric

Engine Cooling: N/A

Engine Cylinders: N/A

Engine Braking: N/A

Bore Stroke(mm): N/A

Bore Stroke(in): N/A

Compression Ratio: N/A

Fuel System: N/A

Fuel Type: N/A

Ignition: N/A

Brakes

Brakes Front: Drum brakes

Brakes Rear: Drum brake

Suspension

Front Suspension: Independent double A-arm coil spring

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 100 / 3.9

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock coil spring

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 100 / 3.9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 1200 / 47.2

Width (mm / in.): 690 / 27.2

Height (mm / in.): 710 / 28.0

Ground Clearance (mm / in.): 100 / 3.9

Wheelbase (mm / in.): 850 / 33.5

Dry Weight (Kg / Lbs.): 65 / 143

Transmission (Gearbox) and Final Drive

Transmission: Automatic

Transmission Make: KAYO

Final Drive: Chain

Drive line Modes: 2WD

Primary Drive Engine / Transmission: Chain

Primary Drive - Front Wheels: N/A

Limited Slip Diff Location: N/A

Diff Lock Location: N/A

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubed

Tires Front: AT19 x 7-8

Front Tire Diameter (in): 19

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: AT19 x 7-8

Rear Tire Diameter (in): 19

Rear Tire Width (in): 7

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): Unknown / N/A

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 680 / 26.8

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Digital Instrumentation: Standard

Trip Computer: No

Trip Odometer: No

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): No

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Light Guard: No

Radiator Guard: No

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Snorkel Air Intake: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: China

Recommend Minimum Age: 6

Parent Company: KAYO

Warranty Info: 12-month limited warranty
