2007 Kawasaki Prairie 360 Specs - Engine, Dimensions & Performance (South Africa)

Engine Spec

Engine Detail: 362cc, Air-cooled, SOHC, four-stroke, single cylinder

Engine Capacity (cc / Ci ): 362 cc / 22.1

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: four-stroke

Engine Cooling: Air-cooled

Engine Cylinders: single cylinder

Engine Braking: Kawasaki Engine Brake Control

Displacement To Weight CC: 0.62

Bore Stroke(mm): 80.0mm x 72.0mm

Bore Stroke(in): 3.15in. x 2.84 in.

Compression Ratio: 8.3:1

Fuel System: Keihin CVK34

Fuel System Brand: Keihin

Carburetor Size MM: 34

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric with recoil backup

Brakes

Brakes Front: Dual hydraulic discs

Brakes Rear: Sealed, oil-bathed, multi-disc

Suspension

Front Suspension: MacPherson strut with 6.7 in. travel

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 170.2 / 6.7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock, preload adjustment with 7.1 in. travel

Suspension Rear - Material: Aluminum

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 180.3 / 7.1

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2065 / 81.3

Width (mm / in.): 1204 / 47.4

Height (mm / in.): 1176 / 46.3

Ground Clearance (mm / in.): 195.6 / 7.7

Wheelbase (mm / in.): 1249.7 / 49.2

Dry Weight (Kg / Lbs.): 263.1 / 581

Transmission (Gearbox) and Final Drive

Transmission: Continuously variable transmission with Kawasaki Engine Brake Control, high and low range, plus reverse

Final Drive: Shaft

Final Drive Ratio: 4.37

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Shaft

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: AT25x8-12 tubeless

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: AT25x10-12 tubeless

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 13.63 / 3.6

Fuel Tank Reserve (l / gal.): 3.6 / 1

Racks and Payload

Rack Capacity Front (Kg / Lbs.): Unknown / 88

Rack Capacity Rear (Kg / Lbs.): Unknown / 154

Storage

Storage Capacity (Kg / Lbs.): 39.9 / 88

Seats

Seat Height (mm / in.): 909.3 / 35.8

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 499 / 1100

Instrumentation

Fuel Level Warning Type: Gauge

Lighting

Lighting: 30W x 2 halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Woodsman Green or Sunbeam Red

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: No

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Kawasaki

Warranty Info: Good Times™ Protection Plan 12, 24, 36 or 48 months - Warranty 12 Months

2007 Kawasaki Prairie 360 ATV Specs South Africa

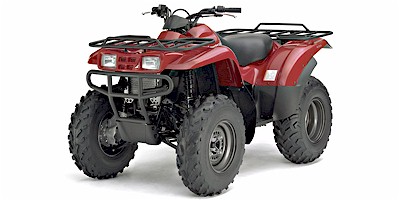

Kawasaki Prairie 360 2007
