2007 Kazuma Jaguar 500 4x4 Specs - Engine, Dimensions & Performance (South Africa)

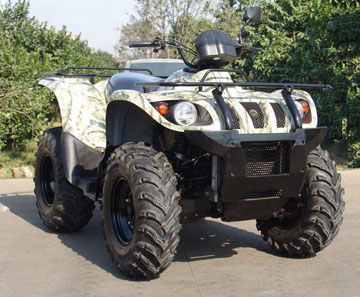

Kazuma Jaguar 500 4x4 2007

Make

Kazuma

Model

Jaguar

Year

2007

Type

Utility Quad Bikes

Add to side-by-side comparison (up to 4 quads)

Engine Spec

Engine Detail: 4-stroke, 1-cylinder

Engine Capacity (cc / Ci ): 499cc / Unknown

Engine Type: 4-stroke

Engine Cooling: Water-Cooled

Engine Cylinders: single-cylinder

Bore Stroke(mm): 3.63mm x 2.96in.(92mm x 75mm)

Compression Ratio: 10.2:1

Lubrication: Pressure splash

Ignition: 12V, CDI

Brakes

Brakes Front: Disc

Brakes Rear: Disc

Suspension

Front Suspension: Independent

Suspension Rear: Independent

Dimensions and Weight

Length (mm / in.): 2032 / 80

Width (mm / in.): 1168 / 46

Height (mm / in.): 1194 / 47

Dry Weight (Kg / Lbs.): 331 / 730

Transmission (Gearbox) and Final Drive

Final Drive: Shaft 4x4

Performance

Power Output(hp in Kw): 32 hp (24 kW) @ 6,800 rpm

Torque (Nm): 38 Nm @ 5,000 rpm
