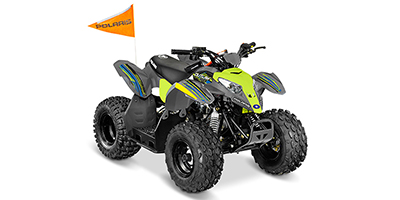

2020 Polaris Outlaw 110 EFI ATV Specs South Africa

2020 Polaris Outlaw 110 EFI - Kids Quad Bikes. Full specs, photos & comparison.

2020 Polaris Outlaw 110 EFI ATV quad bike specs

Polaris Outlaw 110 EFI 2020

Make

Polaris

Model

Outlaw

Year

2020

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 112 / 6.83

Engine Valves: OHV

Engine Type: 4-Stroke

Engine Cooling: Air

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.4

Bore Stroke(mm): 61mm x 57.8mm

Bore Stroke(in): 2.4in. x 2.28in.

Compression Ratio: 9.5:1

Fuel System: Fuel Injected

Fuel Injector Size MM: 22

Fuel Type: Petrol

Ignition: Electric

Speed Governor: Yes

Brakes

Brakes Front: Drum

Brakes Rear: Drum

Suspension

Front Suspension: Independent A-Arm

Suspension - Front Travel (mm / in.): 127 / 5

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 152 / 6

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1558 / 61.32

Width (mm / in.): 935 / 36.8

Height (mm / in.): 978 / 38.5

Ground Clearance (mm / in.): 102 / 4

Wheelbase (mm / in.): 1054 / 41.5

Dry Weight (Kg / Lbs.): 126 / 278

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Duro

Tires Front: Duro: 19 x 7 - 8

Front Tire Diameter (in): 19

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: Duro: 18 x 9.5 - 8

Rear Tire Diameter (in): 18

Rear Tire Width (in): 9.5

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 5.9 / 1.6

Fuel Tank Reserve (l / gal.): 0.86 / 0.2

Racks and Payload

Payload Capacity (Kg / Lbs.): 81.7 / 180

Seats

Seat Height (mm / in.): 686 / 27

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lumbar Adjustment: No

Windshield

Tinted: No

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: No

Cargo Bed Tilt: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Safety Flag: Standard

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 10

Parent Company: Polaris
