2020 Polaris Sportsman 450 H.O. ATV Specs South Africa

2020 Polaris Sportsman 450 H.O. - Utility Quad Bikes. Full specs, photos & comparison.

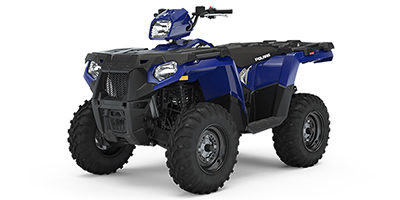

2020 Polaris Sportsman 450 H.O. ATV quad bike specs

Polaris Sportsman 450 H.O. 2020

Make

Polaris

Model

Sportsman

Year

2020

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 500 / 30.51

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Engine Braking: Standard

Engine Make: ProStar

Displacement To Weight CC: 0.71

Bore Stroke(mm): 93mm x 73.6mm

Bore Stroke(in): 3.66in. x 2.9 in.

Compression Ratio: 10:1

Fuel System: Fuel Injected

Carburetor Size MM: 0

Carborator Count: 0

Fuel Type: Petrol

Ignition: Electric

Speed Governor: No

Brakes

Brakes Front: Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: McPherson Strut

Suspension - Front Travel (mm / in.): 208 / 8.2

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Independent Double A-Arm

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 241 / 9.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2109 / 83.04

Width (mm / in.): 1219 / 48

Height (mm / in.): 1194 / 47

Ground Clearance (mm / in.): 267 / 10.5

Wheelbase (mm / in.): 1283 / 50.5

Dry Weight (Kg / Lbs.): 318 / 701

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Transmission Make: Polaris Variable Transmission (PVT)

Final Drive: AWD

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Driveline Make: On-Demand

Limited Slip Diff Location: Rear

Diff Lock Location: Rear

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Polaris

Tires Front: Polaris NS388: 24 x 8-12

Front Tire Diameter (in): 24

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: Polaris NS388: 24 x 10-12

Rear Tire Diameter (in): 24

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 17 / 4.5

Racks and Payload

Payload Capacity (Kg / Lbs.): 220 / 485

Storage

Storage Capacity (Kg / Lbs.): 40.8 / 90

Front Storage Well: Standard

Rear Storage Well: Standard

Seats

Seat Height (mm / in.): 846 / 33.3

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 555.7 / 1225

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Voltage Meter: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Tachometer: Standard

Temperature Warning Type: Gauge

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Composite

Cargo Bed Tilt: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Power Outlet: Standard

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Steering

Steering Type: Manual

Turning Circle: 5.4

Performance

Power Output(hp in Kw): 24.6

Horsepower Brake hp: 33

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Polaris
