2014 Suzuki KingQuad Suzuki KingQuad 750 AXi ATV Specs South Africa

2014 Suzuki KingQuad Suzuki KingQuad 750 AXi - Utility Quad Bikes. Full specs, photos & comparison.

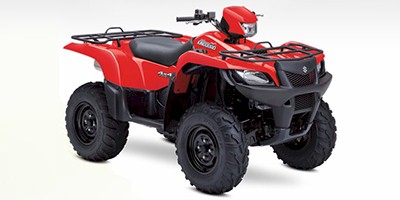

2014 Suzuki KingQuad 750 AXi ATV quad bike specs

Suzuki KingQuad 750 AXi 2014

Make

Suzuki

Model

KingQuad

Year

2014

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 722 / 44.06

Engine Valves: DOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Engine Braking: Engine Braking System

Bore Stroke(mm): 104mm x 85mm

Bore Stroke(in): 4.1in. x 3.35in.

Compression Ratio: 10:1

Fuel System: Fuel Injected

Fuel Type: Petrol

Ignition: Electric

Brakes

Brakes Front: Dual Hydraulic Disc

Front Brake Diameter (mm / in.): 200 / 7.9

Brakes Rear: Sealed Oil Bath Multi-Disc

Suspension

Front Suspension: Independent Double A-Arm

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 170 / 6.7

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Independent Double A-Arm

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 201 / 7.9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Dimensions and Weight

Length (mm / in.): 2115 / 83.28

Width (mm / in.): 1209 / 47.6

Height (mm / in.): 1245 / 49

Ground Clearance (mm / in.): 269 / 10.6

Wheelbase (mm / in.): 1280 / 50.4

Wet Weight (Lbs. / Kg): 666 / 302

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Transmission Make: Quadmatic

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tires Front: Dunlop AT 25 X 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: Dunlop AT 25 X 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 17.5 / 4.6

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Storage Capacity (Cu. ft): 0.37

Storage Capacity (gal): 0.6

Storage Capacity (l): 2.27

Seats

Seat Height (mm / in.): 879 / 34.6

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Suzuki
