2004 Suzuki QuadSport 80 Automatic Specs - Engine, Dimensions & Performance (South Africa)

2004 Suzuki QuadSport 80 Automatic ATV quad bike specs

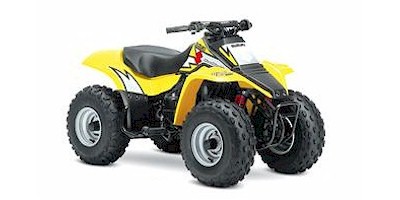

Suzuki QuadSport 80 Automatic 2004

Make

Suzuki

Model

QuadSport

Year

2004

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 82cc, forced-air-cooled, two-stroke, single cylinder

Engine Capacity (cc / Ci ): 82cc / 5

Engine Valves: SOHC (Single overhead Cam)

Engine Type: two-stroke

Engine Cooling: forced-air-cooled

Engine Cylinders: single-cylinder

Displacement To Weight CC: 0.37

Bore Stroke(mm): 50.0mm x 42.0mm

Bore Stroke(in): 1.97in. x 1.65 in.

Compression Ratio: 7.4:1

Fuel System: Mikuni VM16SH

Fuel System Brand: Mikuni

Carburetor Size MM: 16

Carborator Count: 1

Fuel Type: Petrol / 2 Stroke Oil Auto Mix

Lubrication: Oil injection

Ignition: CDI (Electic)

Brakes

Brakes Front: Dual mechanical drum

Front Brake Diameter (mm / in.): 80 / 3.2

Brakes Rear: Single mechanical drum

Rear Brake Diameter (mm / in.): 130 / 5.1

Linked Brake System Front to Rear: Standard

Suspension

Front Suspension: Independent, single A-arm, oil-damped

A-Arm Skid Plate (Front): No

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Unit swing suspension, oil-damped

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Dimensions and Weight

Length (mm / in.): 1420 / 55.9

Width (mm / in.): 805 / 31.7

Height (mm / in.): 870 / 34.3

Ground Clearance (mm / in.): 109.2 / 4.3

Wheelbase (mm / in.): 939.8 / 37

Dry Weight (Kg / Lbs.): 99.8 / 220

Transmission (Gearbox) and Final Drive

Transmission: Variable-speed, automatic clutch

Final Drive: #520 chain

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tires Front: AT 19 x 7-8

Front Tire Diameter (in): 19

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Front Rim Width (in): 7

Tires Rear: AT 19 x 7-8

Rear Tire Diameter (in): 19

Rear Tire Width (in): 7

Rear Rim Diameter (in): 8

Rear Rim Width (in): 7

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 6 / 1.6

Seats

Seat Height (mm / in.): 645.2 / 25.4

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Parental Controls: Standard

Colours

Colors: Yellow/Black, Red/Black

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Foot Peg Location: Driver

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Hand Grips: Standard

Hand Guards: No

Handlebar Pads: Standard

Light Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 12

Parent Company: Suzuki
