2019 Yamaha Raptor 90 ATV Specs South Africa

2019 Yamaha Raptor 90 - Kids Quad Bikes. Full specs, photos & comparison.

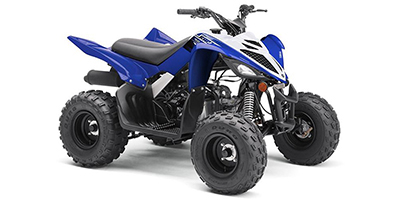

2019 Yamaha Raptor 90 ATV quad bike specs

Yamaha Raptor 90 2019

Make

Yamaha

Model

Raptor

Year

2019

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 90 / 5.49

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.32

Bore Stroke(mm): 47mm x 51.8mm

Bore Stroke(in): 1.85in. x 2.04in.

Compression Ratio: 9.2:1

Fuel System: Carburetor

Carburetor Size MM: 13

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Kick

Speed Governor: Yes

Brakes

Brakes Front: Dual Sealed Drum

Brakes Rear: Drum

Suspension

Front Suspension: A-Arm

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 127 / 5

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 147 / 5.8

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1487 / 58.56

Width (mm / in.): 1021 / 40.2

Height (mm / in.): 955 / 37.6

Ground Clearance (mm / in.): 99 / 3.9

Wheelbase (mm / in.): 1031 / 40.6

Wet Weight (Lbs. / Kg): 279 / 126.6

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: Yes

Tires and Rims

Tire Make: Duro

Tube / Tubeless: Tubeless

Tires Front: Duro AT 18 X 7-8

Front Tire Diameter (in): 18

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: Duro AT 18 X 9-8

Rear Tire Diameter (in): 18

Rear Tire Width (in): 9

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 6.4 / 1.7

Storage

Underseat Storage: Standard

Seats

Seat Height (mm / in.): 749 / 29.5

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lighting

Headlights: Standard

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Full Length Skid Plate: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 10

Parent Company: Yamaha
