2006 Yamaha Raptor 350 YFM350 ATV quad bike specs

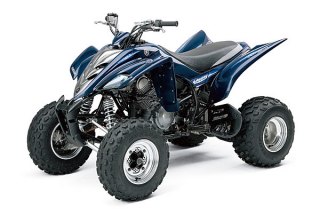

Yamaha Raptor 350 YFM350 2006

Make

Yamaha

Model

Raptor

Year

2006

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 348cc 4-stroke Single, air cooled, SOHC

Engine Capacity (cc / Ci ): 348cc / 21.2

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-stroke

Engine Cooling: air cooled

Engine Cylinders: Single-cylinder

Displacement To Weight CC: 0.93

Bore Stroke(mm): 83 mm X 64.5 mm

Bore Stroke(in): 3.27in. x 2.54 in.

Compression Ratio: 9.2:1

Fuel System: Mikuni 33mm BSR

Fuel System Brand: Mikuni

Carburetor Size MM: 36

Carborator Count: 1

Fuel Type: Petrol

Ignition: CD-CDi Electric

Brakes

Brakes Front: Dual Hydraulic disc

Brakes Rear: Hydraulic disc

Suspension

Front Suspension: Indep. Double Wishbone, 5-way Preload Adjustment

Suspension - Front Travel (mm / in.): 200.7 / 7.9

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm and threaded Preload Adjustment

Rear Travel (mm / in.): 210.8 / 8.3

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1770 / 69.68

Width (mm / in.): 1095 / 43

Height (mm / in.): 1080 / 42.5

Ground Clearance (mm / in.): 114.3 / 4.5

Wheelbase (mm / in.): 1209 / 47.6

Dry Weight (Kg / Lbs.): 170.1 / 375

Transmission (Gearbox) and Final Drive

Transmission: 6-speed Manual Clutch with reverse

Final Drive: 2WD; Sealed O-Ring Chain

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 6

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: 21x7-10

Front Tire Diameter (in): 21

Front Tire Width (in): 7

Front Rim Diameter (in): 10

Tires Rear: 20x10-9

Rear Tire Diameter (in): 20

Rear Tire Width (in): 10

Rear Rim Diameter (in): 9

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 11 / 2.9

Seats

Seat Height (mm / in.): 820.4 / 32.3

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Yamaha blue or White/ Red

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Decal Kit: Standard

Exterior Covers: Standard

Exterior Guards: Standard

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Hand Grips: Standard

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Yamaha
