2007 Honda FourTrax Rancher ES Specs - Engine, Dimensions & Performance (South Africa)

Engine Spec

Engine Detail: 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke

Engine Capacity (cc / Ci ): 420 cc / 25.6

Engine Valves: fuel-injected OHV

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: four-stroke

Engine Cooling: liquid-cooled

Engine Cylinders: longitudinally mounted single-cylinder

Engine Braking: Standard

Displacement To Weight CC: 0.8

Bore Stroke(mm): 86.5mm x 71.5mm

Bore Stroke(in): 3.41in. x 2.82 in.

Fuel System: Keihin 34mm throttle-body fuel-injection system

Fuel System Brand: Keihin

Fuel Injector Size MM: 34

Fuel Type: Petrol

Lubrication: wet-sump

Ignition: Full transistor with electronic advance,Electric with optional auxiliary recoil

Brakes

Brakes Front: Dual hydraulic disc

Brakes Rear: Sealed mechanical drum

Suspension

Front Suspension: Independent double-wishbone with 6.3 inches travel

Suspension - Front Travel (mm / in.): 160 / 6.3

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shockwith 6.3 inches travel

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 160 / 6.3

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2055 / 80.9

Width (mm / in.): 1171 / 46.1

Height (mm / in.): 1148 / 45.2

Ground Clearance (mm / in.): 165.1 / 6.5

Wheelbase (mm / in.): 1254.8 / 49.4

Dry Weight (Kg / Lbs.): 238.1 / 525

GVWR (Kg / Lbs.): 469 / 1034

Transmission (Gearbox) and Final Drive

Transmission: Automatic - ESP Five-speed with Reverse

Final Drive: Direct Rear Driveshaft

Drive line Modes: 1

Primary Drive - Rear Wheels: Shaft

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tube / Tubeless: Tubed

Tires Front: 24 x 8-12

Front Tire Diameter (in): 24

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 24 x 10-11

Rear Tire Diameter (in): 24

Rear Tire Width (in): 11

Rear Rim Diameter (in): 10

Rim Material: Steel

Fuel

Fuel Tank Capacity (l / gal.): 14 / 3.7

Storage

Storage Capacity (Kg / Lbs.): 29.9 / 66

Underseat Storage: Standard

Rear Storage Well: Standard

Seats

Seat Height (mm / in.): 823 / 32.4

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 385.6 / 850

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Olive, Red, Blue

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Brush Guard: Yes

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Power Outlet: Standard

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Turning Circle: 8.9

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Honda

Warranty Info: 6 months Coverage of defects in materials and workmanship

2007 Honda FourTrax Rancher ES ATV Specs South Africa

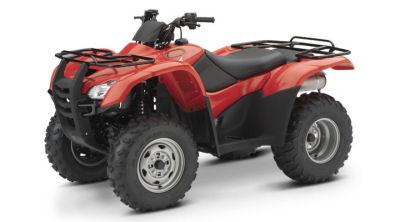

Honda FourTrax Rancher ES 2007
