2007 Kawasaki ATV & Quad Bike Specs

Engine Spec

Engine Detail: 749cc, SOHC, four valves per cylinder, Liquid-cooled, 90-degree, four-stroke V-twin

Engine Capacity (cc / Ci ): 749 cc / 45.7

Engine Valves: SOHC, four valves per cylinder

Valve Configuration: 4-valves

Total Valves: 8

Engine Type: four-stroke

Engine Cooling: Liquid-cooled

Engine Cylinders: V-twin

Engine Braking: Kawasaki Engine Brake Control

Displacement To Weight CC: 1.24

Bore Stroke(mm): 85.0mm x 66.0mm

Bore Stroke(in): 3.35in. x 2.6 in.

Compression Ratio: 8.8:1

Fuel System: (2 x) Keihin CVKR-34

Fuel System Brand: Keihin

Carburetor Size MM: 34

Carborator Count: 2

Fuel Type: Petrol

Ignition: Digital DC-CDI

Brakes

Brakes Front: Dual hydraulic 200mm discs with 2-piston calipers

Brakes Rear: Sealed, oil-bathed, multi-disc

Suspension

Front Suspension: Dual A-arm with 6.7 in. travel

Suspension - Front Travel (mm / in.): 170.2 / 6.7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Fully Independent, dual A-arm with 7.9 in. travel

Suspension Rear - Material: Aluminum

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 200.7 / 7.9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2195 / 86.4

Width (mm / in.): 1166 / 45.9

Height (mm / in.): 1232 / 48.5

Ground Clearance (mm / in.): 269.2 / 10.6

Wheelbase (mm / in.): 1282.7 / 50.5

Dry Weight (Kg / Lbs.): 274.1 / 604.2

Transmission (Gearbox) and Final Drive

Transmission: Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control

Final Drive: Selectable four-wheel drive with Variable Front Differential Control, shaft

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: AT25x8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: AT25x10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 18.93 / 5.0

Racks and Payload

Rack Capacity Front (Kg / Lbs.): Unknown / 88

Rack Capacity Rear (Kg / Lbs.): Unknown / 176

Storage

Storage Capacity (Kg / Lbs.): 39.9 / 88

Underseat Storage: Standard

Fender Storage Location: Front

Seats

Seat Height (mm / in.): 934.7 / 36.8

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 567 / 1250

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Lighting

Lighting: (4) 40W headlights, 5W taillight, 21W stoplight

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Woodsman Green, Lime Green, Sunbeam Red, Super Black Special: Metallic Nocturne Blue Camo: REALTREE™ Hardwoods Green® HD

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: No

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Kawasaki

Warranty Info: Good Times™ Protection Plan 12, 24, 36 or 48 months - Warranty 12 Months

2007 Kawasaki Brute Force 750 4x4i ATV Specs South Africa

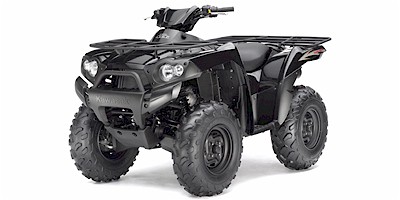

Kawasaki Brute Force 750 4x4i 2007
