2020 Kawasaki KFX 90 ATV Specs South Africa

2020 Kawasaki KFX 90 - Kids Quad Bikes. Full specs, photos & comparison.

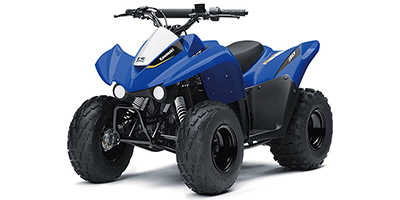

2020 Kawasaki KFX 90 ATV quad bike specs

Kawasaki KFX 90 2020

Make

Kawasaki

Model

KFX

Year

2020

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 89 / 5.43

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 47mm x 51.8mm

Bore Stroke(in): 1.85in. x 2.04in.

Compression Ratio: 10:1

Fuel System: Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 16

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Kick

Speed Governor: Yes

Brakes

Brakes Front: Dual Drum

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: Independent A-Arm

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 71 / 2.8

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 74 / 2.9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1426 / 56.16

Width (mm / in.): 904 / 35.6

Height (mm / in.): 925 / 36.4

Ground Clearance (mm / in.): 99 / 3.9

Wheelbase (mm / in.): 965 / 38

Wet Weight (Lbs. / Kg): 266.8 / 121

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Maxxis

Tube / Tubeless: Tubeless

Tires Front: Maxxis AT 18 x 7 - 8

Front Tire Diameter (in): 18

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: Maxxis AT 18 x 9 - 8

Rear Tire Diameter (in): 18

Rear Tire Width (in): 9

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 5.7 / 1.5

Seats

Seat Height (mm / in.): 650 / 25.6

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lumbar Adjustment: No

Windshield

Tinted: No

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

Cargo Bed Tilt: No

CV Boot Cover: No

Decal Kit: Standard

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Handlebar Pads: Standard

Light Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Turning Circle: 8.7

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 12

Parent Company: Kawasaki

Warranty Info: 12 Limited
