2006 Kawasaki ATV & Quad Bike Specs

Engine Spec

Engine Detail: 633 cc, 4-stroke, Liquid-cooled, V-twin, 90-degree

Engine Capacity (cc / Ci ): 633 cc / 38.63

Engine Valves: SOHC, four valves per cylinder

Valve Configuration: 4-valves per cylinder

Total Valves: 8

Engine Type: 4-stroke

Engine Cooling: Liquid-cooled

Engine Cylinders: two-cylinder

Engine Braking: All Wheel

Displacement To Weight CC: 1.05

Bore Stroke(mm): 85 mm x 66 mm

Bore Stroke(in): 3.15in. x 2.48in.

Compression Ratio: 9.9:1

Fuel System: two keihin CVKR-32

Fuel System Brand: Keihin

Carburetor Size MM: 32

Carborator Count: 2

Fuel Type: Petrol

Ignition: DC-CDI - Electric/recoil

Brakes

Brakes Front: Two Dual-piston disc brakes

Brakes Rear: Sealed, oil-bathed, multi-disc

Suspension

Front Suspension: MacPherson Struts 6.7 in travel

Suspension - Front Travel (mm / in.): 170 / 6.7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Aluminum swingarm and single shock 7.2 in travel

Suspension Rear - Material: Aluminum

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 183 / 7.2

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2192 / 86.3

Width (mm / in.): 1212 / 47.7

Height (mm / in.): 1250 / 49.2

Ground Clearance (mm / in.): 185.4 / 7.3

Wheelbase (mm / in.): 1292.9 / 50.9

Dry Weight (Kg / Lbs.): 273.1 / 602

Transmission (Gearbox) and Final Drive

Transmission: Dual-range CVT plus reverse with Kawasaki Engine Brake Control

Final Drive: 2x4 / 4x4 shaft

Final Drive Ratio: 4.38

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: AT25x8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: AT25x10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 18 / 4.8

Racks and Payload

Rack Capacity Front (Kg / Lbs.): Unknown / 88

Rack Capacity Rear (Kg / Lbs.): Unknown / 176

Storage

Storage Capacity (Kg / Lbs.): 39.9 / 88

Underseat Storage: Standard

Fender Storage Location: Front

Seats

Seat Height (mm / in.): 861.1 / 33.9

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 567 / 1,250

Instrumentation

Instumentation: Speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4 / 4x4 indicator light, neutral indicator light, reverse indicator light, low fuel warning light, low oil warning light

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Lighting

Lighting: Two 45-watt headlights, taillight, brake light

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Woodsman Green, Aztec Red

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: No

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Kawasaki

2006 Kawasaki Brute Force 650 4x4 ATV Specs South Africa

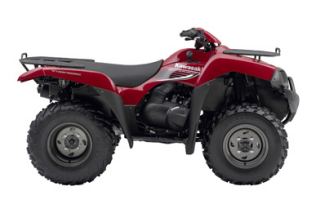

Kawasaki Brute Force 650 4x4 2006
