2025 KAYO ATAT 110 ATV Specs South Africa

2025 KAYO ATAT 110 - Kids Quad Bikes. Full specs, photos & comparison.

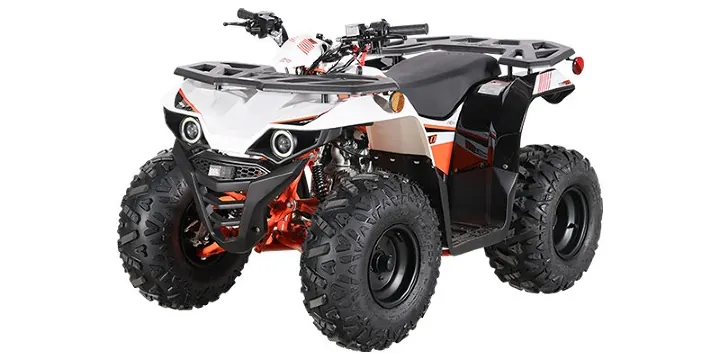

2025 KAYO ATAT 110 ATV quad bike specs

KAYO ATAT 110 2025

Make

KAYO

Model

ATAT

Year

2025

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 108 / 6.6

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 52.4mm x 49.5mm

Bore Stroke(in): 2.06in. x 1.95in.

Compression Ratio: 9.0:1

Fuel System: Carburetor

Fuel Type: Petrol

Ignition: CDI Electronic

Brakes

Brakes Front: Single hydraulic disc brake

Front Brake Diameter (mm / in.): 180 / 7.1

Brakes Rear: Sealed mechanical drum brake

Suspension

Front Suspension: Independent double A-arm coil spring oil damped

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 165 / 6.5

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock coil spring oil damped

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 165 / 6.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 1510 / 59.4

Width (mm / in.): 910 / 35.8

Height (mm / in.): 1055 / 41.5

Ground Clearance (mm / in.): 165 / 6.5

Wheelbase (mm / in.): 1055 / 41.5

Dry Weight (Kg / Lbs.): 100 / 220

Transmission (Gearbox) and Final Drive

Transmission: Semi-automatic 4-speed with reverse

Transmission Make: KAYO

Final Drive: Chain

Drive line Modes: 2WD

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Chain

Limited Slip Diff Location: NULL

Diff Lock Location: NULL

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tube / Tubeless: Tubeless

Tires Front: 19 x 7-8

Front Tire Diameter (in): 19

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: 19 x 7-8

Rear Tire Diameter (in): 19

Rear Tire Width (in): 7

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): Unknown / 4.0 / 1.1

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 785 / 30.9

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Instrumentation

Digital Instrumentation: Standard

Trip Computer: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: Standard

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: China

Recommend Minimum Age: 12

Parent Company: KAYO

Warranty Info: 12-month limited warranty
