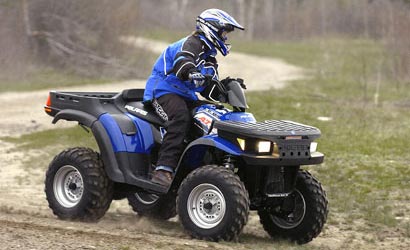

2006 Polaris ATP 330 ATV Specs South Africa

Engine Spec

Engine Detail: 4-stroke,

Engine Capacity (cc / Ci ): 329 cc / Unknown

Engine Valves: SOHC

Engine Type: 4-stroke

Engine Cooling: Air w/ fan-assist oil cooler

Fuel System: Mikuni 34mm CV

Ignition: Starting Electric w/ recoil backup

Brakes

Brakes Front: Single-lever hydraulic disc

Brakes Rear: Single-lever hydraulic disc w/ hydraulic rear foot brake

Suspension

Front Suspension: MacPherson strut with 6.7/17 in/cm travel

Suspension Rear: Swing arm w/ 6/15.2 in/cm travel

Dimensions and Weight

Length (mm / in.): 2311 / 91

Width (mm / in.): 1168 / 46

Height (mm / in.): 1194 / 47

Ground Clearance (mm / in.): 165 / 6.5

Wheelbase (mm / in.): 1423 / 56

Dry Weight (Kg / Lbs.): 326 / 719

Transmission (Gearbox) and Final Drive

Transmission: Transmission P/R/N/L/H Automatic PVT - EBS (Engine Braking System) Accessory

Final Drive: Drive Shaft

Tires and Rims

Tires Front: 25 x 8 - 12/24 x 8 - 12

Tires Rear: 25 x 11 - 10/24 x 11 - 12

Fuel

Fuel Tank Capacity (l / gal.): 12.30 / 3.25

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 40.9 / 90

Rack Capacity Rear (Kg / Lbs.): 113.6 / 250

Seats

Seat Height (mm / in.): 864 / 34

Towing

Towing Capacity (Kg / Lbs.): 454.5 / 1000

Instrumentation

Instumentation: Gauge Type Digital Gauge DC Outlet Accessory

Colours

Colors: Sonic Blue/Black

Steering

Turning Circle: 75in or 190.5 cm
