2006 Polaris Magnum 330 4x4 Specs - Engine, Dimensions & Performance (South Africa)

Engine Spec

Engine Detail: 329cc, 4-Stroke, Single-Cylinder

Engine Capacity (cc / Ci ): 329 cc / 20.08

Engine Valves: SOHC

Valve Configuration: 4-valve

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Air / Oil

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.52

Bore Stroke(mm): 78.5mm x 68mm

Bore Stroke(in): 3.09in. x 2.68in.

Compression Ratio: 9.2:1

Fuel System: Mikuni 34 Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 34

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Pull

Brakes

Brakes Front: Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: McPherson Struts with 6.1 Inch Travel

Suspension - Front Travel (mm / in.): 170 / 6.7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Steel Swing Arm with 7.1 Travel

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 180 / 7.1

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2057 / 81

Width (mm / in.): 1168 / 46

Height (mm / in.): 1168 / 46

Ground Clearance (mm / in.): 171 / 6.8

Wheelbase (mm / in.): 1264 / 49.8

Dry Weight (Kg / Lbs.): 288.9 / 637

GVWR (Kg / Lbs.): 499 / 1100

Tongue Weight (lbs/kgs): 100 / 45.4

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT) Hi / Low Range and reverse

Transmission Make: Polaris Variable Transmission (PVT)

Final Drive: Selectable 4X2 / 4X4 Shaft drive

Drive line Modes: 2

Primary Drive - Rear Wheels: Shaft

Driveline Make: On-Demand

Limited Slip Diff Location: Rear

Diff Lock Location: Rear

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Carlisle

Tires Front: Carlisle 24 X 8-12

Front Tire Diameter (in): 24

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: Carlisle 24 X 11-12

Rear Tire Diameter (in): 24

Rear Tire Width (in): 11

Rear Rim Diameter (in): 12

Rim Material: Steel

Fuel

Fuel Tank Capacity (l / gal.): 12.5 / 3.3

Storage

Storage Capacity (Kg / Lbs.): 40.8 / 90

Front Storage Well: Standard

Seats

Seat Height (mm / in.): 864 / 34

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 453.6 / 1000

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Tachometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Turning Circle: 5.9 feet Inside tire: 71 in. (108.3 cm)

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Polaris

2006 Polaris Magnum 330 4x4 ATV Specs South Africa

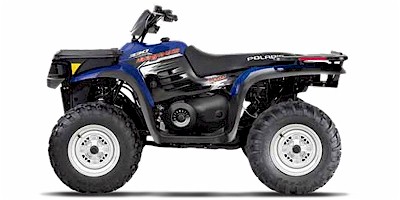

Polaris Magnum 330 4x4 2006
