2020 Polaris Sportsman 6x6 570 ATV Specs South Africa

2020 Polaris Sportsman 6x6 570 - Utility Quad Bikes. Full specs, photos & comparison.

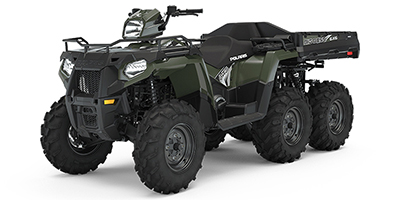

2020 Polaris Sportsman 6x6 570 ATV quad bike specs

Polaris Sportsman 6x6 570 2020

Make

Polaris

Model

Sportsman

Year

2020

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 567 / 34.60

Engine Valves: DOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Engine Braking: Standard

Engine Make: ProStar

Displacement To Weight CC: 0.53

Bore Stroke(mm): 99mm x 73.6mm

Bore Stroke(in): 3.9in. x 2.9 in.

Compression Ratio: 10:1

Fuel System: Fuel Injected

Carborator Count: 0

Fuel Type: Petrol

Ignition: Electric

Speed Governor: No

Brakes

Brakes Front: Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: McPherson Strut

Suspension - Front Travel (mm / in.): 208 / 8.2

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Independent Double A-Arm

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 241 / 9.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2947 / 116.04

Width (mm / in.): 1245 / 49

Height (mm / in.): 1245 / 49

Ground Clearance (mm / in.): 292 / 11.5

Wheelbase (mm / in.): 2134 / 84

Dry Weight (Kg / Lbs.): 489 / 1075

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Transmission Make: Polaris Variable Transmission (PVT)

Final Drive: 6X6

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Driveline Make: On-Demand

Limited Slip Diff Location: Rear

Diff Lock Location: Rear

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Polaris PXT

Tires Front: Polaris PXT: 26 x 8-12

Front Tire Diameter (in): 26

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: Polaris PXT: 26 x 10-12

Rear Tire Diameter (in): 26

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 25.5 / 6.75

Racks and Payload

Payload Capacity (Kg / Lbs.): 507 / 1115

Rack Rails Location: Front

Rear Rack: Standard

Storage

Storage Capacity (Kg / Lbs.): 40.8 / 90

Front Storage Well: Standard

Seats

Seat Height (mm / in.): 940 / 37

Number Of Seats: 2

Seat Location: Driver and Passenger

Seat Material: Vinyl

Seat Type: Two-Piece

Seat Adjustable: No

Backrest Location: Passenger

Backrest Type: Fixed

Lumbar Adjustment: No

Windshield

Tinted: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 680 / 1500

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Voltage Meter: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Tachometer: Standard

Temperature Warning Type: Gauge

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Composite

Cargo Bed Material: Polyethylene

Cargo Bed Tilt: Yes

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Power Outlet: Standard

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Power

Performance

Power Output(hp in Kw): 32.8

Horsepower Brake hp: 44

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Polaris
