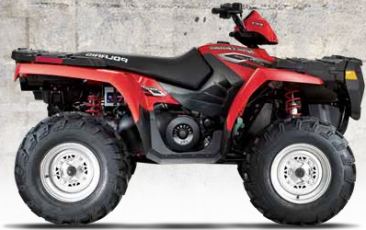

2006 Polaris Sportsman 500 EFI ATV Specs South Africa

Engine Spec

Engine Detail: 499cc, 4-stroke, Liquid-Cooled

Engine Capacity (cc / Ci ): 499 cc / Unknown

Engine Type: 4-stroke

Engine Cooling: Liquid

Engine Braking: EBS (Engine Braking System) Standard

Fuel System: 39mm Throttle Body

Ignition: Electric with recoil backup

Brakes

Brakes Front: Single-lever hydraulic discs

Brakes Rear: Single-lever hydraulic disc with hydraulic rear foot brake

Suspension

Front Suspension: MacPherson strut with 20.8cm travel

Suspension Rear: Fully independent, progressive rate with anti-roll bar, 24.1cm travel

Dimensions and Weight

Length (mm / in.): 2108 / 83

Width (mm / in.): 1219 / 48

Height (mm / in.): 1219 / 48

Ground Clearance (mm / in.): 279 / 11

Wheelbase (mm / in.): 1283 / 50.5

Dry Weight (Kg / Lbs.): 3243 / 7149.6

Transmission (Gearbox) and Final Drive

Transmission: Automatic PVT P/R/N/L/H

Final Drive: Shaft

Tires and Rims

Tires Front: 26x8R12 PXT

Tires Rear: 26x11R12 PXT

Fuel

Fuel Tank Capacity (l / gal.): 156 / 41.2

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 40.8 / Unknown

Rack Capacity Rear (Kg / Lbs.): 81.6 / Unknown

Seats

Seat Height (mm / in.): 857 / 34

Towing

Towing Capacity (Kg / Lbs.): 555.7 / Unknown

Instrumentation

Instumentation: Gauge Type : Digital

Lighting

Lighting: Rear Work Lights

Colours

Colors: Green/Black; Black/Silver; Black/Red

Steering

Turning Circle: (inside tire) 165.1cm
