2025 Suzuki QuadSport Z50 ATV Specs South Africa

2025 Suzuki QuadSport Z50 - Kids Quad Bikes. Full specs, photos & comparison.

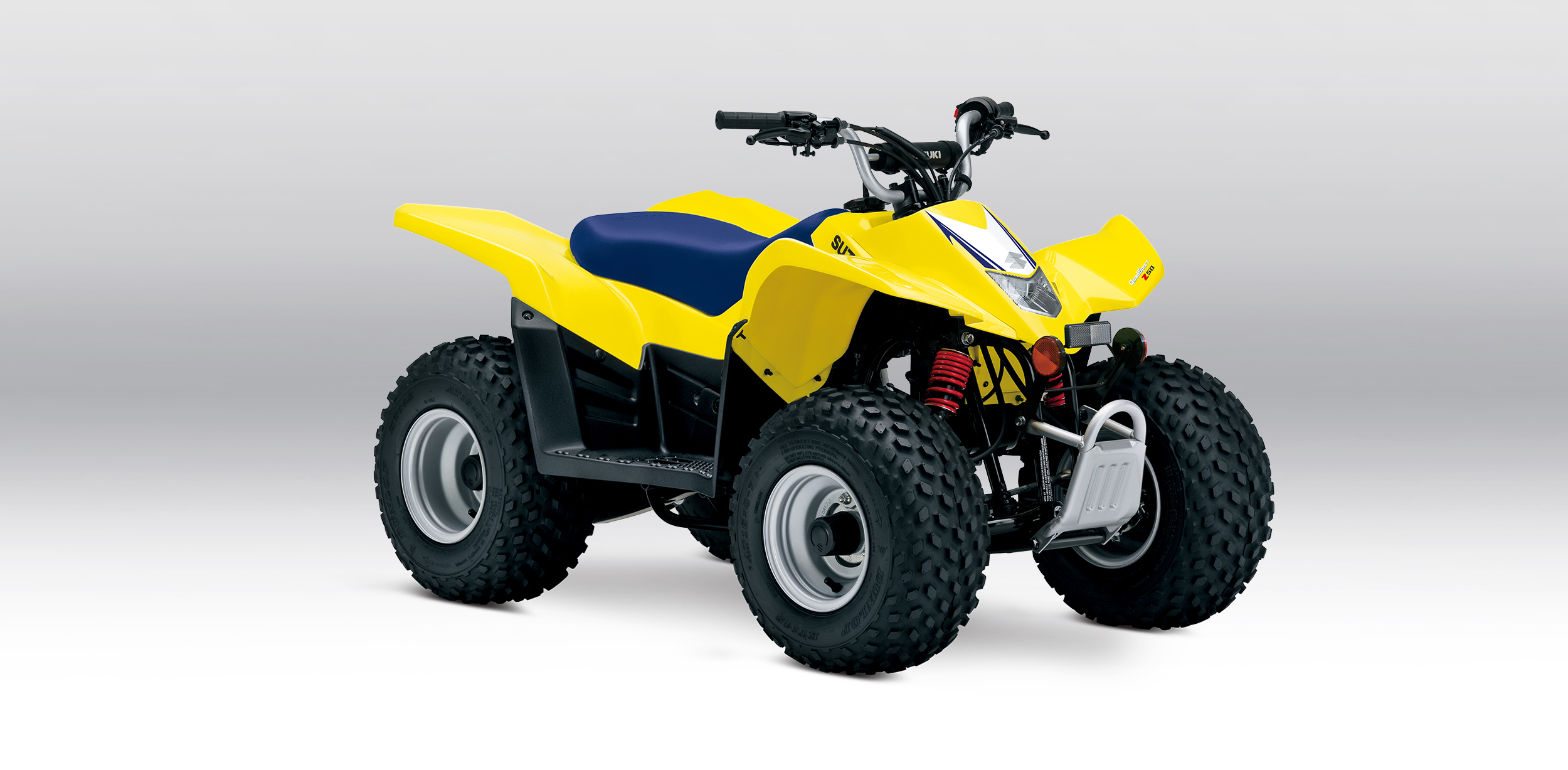

2025 Suzuki QuadSport Z50 ATV quad bike specs

Suzuki QuadSport Z50 2025

Make

Suzuki

Model

QuadSport

Year

2025

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 49 / 3.0

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Air-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 36.0mm x 48.6mm

Bore Stroke(in): 1.42in. x 1.91in.

Compression Ratio: 8.4:1

Fuel System: Mikuni VM13 carburetor

Fuel Type: Petrol

Ignition: CDI Electronic

Brakes

Brakes Front: Drum brakes

Brakes Rear: Drum brake

Suspension

Front Suspension: Independent swing axle coil spring oil damped

A-Arm Skid Plate (Front): Yes

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm coil spring oil damped

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 1270 / 50.0

Width (mm / in.): 760 / 29.9

Height (mm / in.): 765 / 30.1

Ground Clearance (mm / in.): 120 / 4.7

Wheelbase (mm / in.): 830 / 32.7

Dry Weight (Kg / Lbs.): 78 / 171

Transmission (Gearbox) and Final Drive

Transmission: Automatic V-belt with centrifugal clutch

Transmission Make: QuadMatic

Final Drive: Chain

Drive line Modes: 2WD

Primary Drive Engine / Transmission: Chain

Primary Drive - Front Wheels: NULL

Limited Slip Diff Location: NULL

Diff Lock Location: NULL

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubed

Tires Front: AT16 x 8-7

Front Tire Diameter (in): 16

Front Tire Width (in): 8

Front Rim Diameter (in): 7

Tires Rear: AT16 x 8-7

Rear Tire Diameter (in): 16

Rear Tire Width (in): 8

Rear Rim Diameter (in): 7

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 2.7 / 0.7

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 535 / 21.1

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Digital Instrumentation: Standard

Trip Computer: No

Trip Odometer: No

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): No

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Light Guard: No

Radiator Guard: No

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Snorkel Air Intake: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 6

Parent Company: Suzuki

Warranty Info: 12-month limited warranty
