2020 Suzuki QuadSport Z90 ATV Specs South Africa

2020 Suzuki QuadSport Z90 - Kids Quad Bikes. Full specs, photos & comparison.

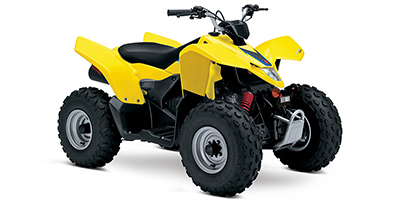

2020 Suzuki QuadSport Z90 ATV quad bike specs

Suzuki QuadSport Z90 2020

Make

Suzuki

Model

QuadSport

Year

2020

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 90 / 5.49

Engine Valves: SOHC

Engine Type: 4-Stroke

Engine Cooling: Air

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 45.5mm x 55.2mm

Bore Stroke(in): 1.79in. x 2.17in.

Compression Ratio: 9.5:1

Fuel System: Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 16

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Pull

Kill Switch Tether Cord: Standard

Speed Governor: Yes

Brakes

Brakes Front: Dual Drum

Brakes Rear: Drum

Suspension

Front Suspension: Independent A-Arm

A-Arm Skid Plate (Front): No

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1506 / 59.28

Width (mm / in.): 874 / 34.4

Height (mm / in.): 914 / 36

Ground Clearance (mm / in.): 150 / 5.9

Wheelbase (mm / in.): 1006 / 39.6

Wet Weight (Lbs. / Kg): 280 / 127

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: Dunlop AT 19 X 7-8

Front Tire Diameter (in): 19

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: Dunlop AT 19 X 7-8

Rear Tire Diameter (in): 19

Rear Tire Width (in): 7

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 6 / 1.6

Seats

Seat Height (mm / in.): 650 / 25.6

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Decal Kit: Standard

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Hand Guards: No

Handlebar Pads: Standard

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 12

Parent Company: Suzuki

Warranty Info: 12 Limited
