2020 Yamaha Raptor 700R SE ATV Specs South Africa

2020 Yamaha Raptor 700R SE - Racing Quad Bikes. Full specs, photos & comparison.

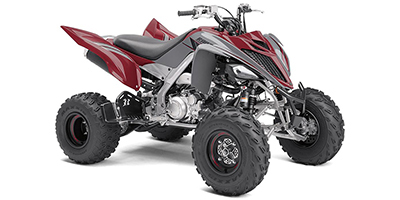

2020 Yamaha Raptor 700R SE ATV quad bike specs

Yamaha Raptor 700R SE 2020

Make

Yamaha

Model

Raptor

Year

2020

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 686 / 41.86

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 1.63

Bore Stroke(mm): 102mm x 84mm

Bore Stroke(in): 4.02in. x 3.31in.

Compression Ratio: 10.0:1

Fuel System: Fuel Injected

Fuel Injector Size MM: 44

Fuel Type: Petrol

Ignition: Electric

Brakes

Brakes Front: Dual Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: Independent Double Wishbone

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 231 / 9.1

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: Yes

Suspension Rear: Swing Arm

Suspension Rear - Material: Aluminum

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 257 / 10.1

Rear Adjustable Rebound Damping: Yes

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1844 / 72.60

Width (mm / in.): 1156 / 45.5

Height (mm / in.): 1115 / 43.9

Ground Clearance (mm / in.): 241 / 9.5

Wheelbase (mm / in.): 1280 / 50.4

Wet Weight (Lbs. / Kg): 422 / 191.4

Transmission (Gearbox) and Final Drive

Transmission: Manual

Final Drive: 4X2

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tube / Tubeless: Tubeless

Tires Front: Maxxis AT 22 X 7-10

Front Tire Diameter (in): 22

Front Tire Width (in): 7

Front Rim Diameter (in): 10

Tires Rear: Maxxis AT 20 X 10-9

Rear Tire Diameter (in): 20

Rear Tire Width (in): 10

Rear Rim Diameter (in): 9

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 11 / 2.9

Seats

Seat Height (mm / in.): 831 / 32.7

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Fuel Level Warning Type: Light

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Comfort

Adjustable Levers: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Aluminum / Steel

Front Bumper: Standard

Front Fender: Standard

Full Length Skid Plate: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Yamaha

Warranty Info: 6 Limited
