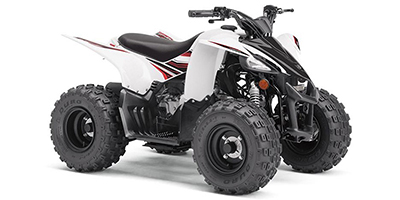

2019 Yamaha YFZ 50 ATV Specs South Africa

2019 Yamaha YFZ 50 - Kids Quad Bikes. Full specs, photos & comparison.

2019 Yamaha YFZ 50 ATV quad bike specs

Yamaha YFZ 50 2019

Make

Yamaha

Model

YFZ

Year

2019

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 49 / 2.99

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.22

Bore Stroke(mm): 39mm x 41.4mm

Bore Stroke(in): 1.54in. x 1.63in.

Compression Ratio: 8.5:1

Fuel System: Carburetor

Carburetor Size MM: 12

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Kick

Kill Switch Tether Cord: Standard

Speed Governor: Yes

Brakes

Brakes Front: Dual Sealed Drum

Brakes Rear: Sealed Drum

Suspension

Front Suspension: A-Arm

Suspension - Front Travel (mm / in.): 61 / 2.4

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 51 / 2

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1250 / 49.20

Width (mm / in.): 820 / 32.3

Height (mm / in.): 770 / 30.3

Ground Clearance (mm / in.): 89 / 3.5

Wheelbase (mm / in.): 831 / 32.7

Wet Weight (Lbs. / Kg): 220 / 99.8

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 1

Reverse: No

Tires and Rims

Tire Make: Duro

Tube / Tubeless: Tubeless

Tires Front: Duro® 16 X 6.5-7

Front Tire Diameter (in): 16

Front Tire Width (in): 6.5

Front Rim Diameter (in): 7

Tires Rear: Duro® 16 X 7-7

Rear Tire Diameter (in): 16

Rear Tire Width (in): 7

Rear Rim Diameter (in): 7

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 5.7 / 1.5

Seats

Seat Height (mm / in.): 584 / 23

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 6

Parent Company: Yamaha
