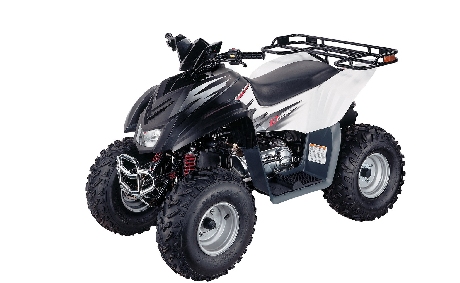

Dinli Diablo 150 2007 specs
Below are some specifications of the Dinli Diablo 150 2007 model
ATV Type : Kids Quad Bikes
Model ID : JP604-150
Engine - Engine Detail : 4-stroke single, SOHC
- Engine Capacity : 149 cc
- Valve Spec : SOHC
- Type : 4-stroke
- Cooling : Air-cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 57.4 mm x 57.8 mm
- Ignition : Electric / kick
Gearbox - Transmission : Automatic (CVT-belt) with reverse
- Final Drive : Chain 428 O-ring
Fuel - Fuel Tank Capacity (Gal) : 1.5 gal.
- Fuel Tank Capacity (Liters) : 5.68 liters
Dimensions and Weight - Length (Inches) : 58.3 in
- Width (Inches) : 34.3 in
- Height (Inches) : 40.1 in
- Seat Height (Inches) : 29.5 in
- Ground Clearance (Inches) : 0 in
- Wheelbase (Inches) : 39.4 in
- Dry Weight (Lbs) : 231 lb
- Length (mm) : 1481mm
- Width (mm) : 871mm
- Height (mm) : 1019mm
- Seat Height (mm) : 749mm
- Wheelbase (mm) : 1001mm
- Dry Weight (Kg) : 104.78 kg
Suspension, Brakes and Tires - Suspension - Front : Single A-arms with adjustable hydraulic shocks with 2 in. travel
- Suspension - Rear : Swing-arm with adjustable hydraulic shock with 2 in. travel
- Brakes - Front : Drum
- Brakes - Rear : Hydraulic disc
- Tires - Front : Maxxis 19 x 7-8
- Tires - Rear : Maxxis 18 x 9.5-8
Carry Racks - Rack Capacity - Front (Lbs) : 225 lb
|
