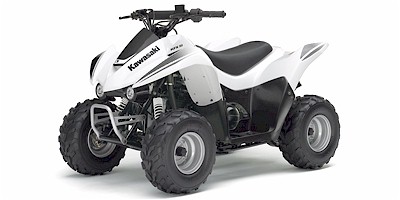

2007 Kawasaki KFX 50 Specs - Engine, Dimensions & Performance (South Africa)

Engine Spec

Engine Detail: 49.5cc, Air-cooled, four-stroke, single cylinder

Engine Capacity (cc / Ci ): 49.5 cc / 3

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: four-stroke

Engine Cooling: Air-cooled

Engine Cylinders: single cylinder

Displacement To Weight CC: 0.21

Bore Stroke(mm): 39.0mm x 41.4mm

Bore Stroke(in): 1.54in. x 1.63 in.

Compression Ratio: 10.0:1

Fuel System: Keihin PTE 16

Fuel System Brand: Keihin

Carburetor Size MM: 16

Carborator Count: 1

Fuel Type: Petrol

Ignition: Solid state CDI

Kill Switch Tether Cord: Standard

Speed Governor: Yes

Brakes

Brakes Front: Dual mechanical drums

Brakes Rear: Hydraulic disc

Linked Brake System Front to Rear: Standard

Suspension

Front Suspension: Single A-arm with twin shock absorbers with 2.8 in. travel

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 71.1 / 2.8

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock absorber with 2.9 in. travel

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 73.7 / 2.9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1360 / 55.1

Width (mm / in.): 881 / 34.7

Ground Clearance (mm / in.): 134.6 / 5.3

Wheelbase (mm / in.): 965.2 / 38

Dry Weight (Kg / Lbs.): 105.2 / 232

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable Automatic

Final Drive: Chain

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 1

Reverse: No

Tires and Rims

Tube / Tubeless: Tubeless

Tires Front: AT16x8-7 tubeless

Front Tire Diameter (in): 16

Front Tire Width (in): 8

Front Rim Diameter (in): 7

Tires Rear: AT16x8-7 tubeless

Rear Tire Diameter (in): 16

Rear Tire Width (in): 8

Rear Rim Diameter (in): 7

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 5.68 / 1.5

Seats

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Colours

Colors: Lime Green, Bright White

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Handlebar Pads: Standard

Light Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 6

Parent Company: Kawasaki

Warranty Info: Good Times™ Protection Plan 12, 24, 36 or 48 months - Warranty 12 Months
