2006 Polaris Outlaw 500 Specs - Engine, Dimensions & Performance (South Africa)

2006 Polaris Outlaw 500 ATV quad bike specs

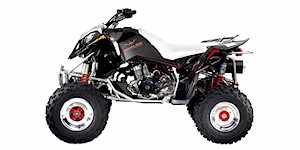

Polaris Outlaw 500 2006

Make

Polaris

Model

Outlaw

Year

2006

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 499cc, 4-Stroke,DOHC ,Single-Cylinder

Engine Capacity (cc / Ci ): 499 cc / 30.4

Engine Valves: DOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 1.14

Fuel System: Mikuni 42 Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 42

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric

Brakes

Brakes Front: Dual Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: Double A-Arm with 10 inch travel

Suspension - Front Travel (mm / in.): 254 / 10

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Independent Aluminum with 10 inch travel

Suspension Rear - Material: Aluminum

Rear Travel (mm / in.): 254 / 10

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1816 / 71.5

Width (mm / in.): 1207 / 47.5

Height (mm / in.): 1143 / 45

Ground Clearance (mm / in.): 292.1 / 11.5

Wheelbase (mm / in.): 1283 / 50.5

Dry Weight (Kg / Lbs.): 199.1 / 439

Transmission (Gearbox) and Final Drive

Transmission: Manual 5 speed with reverse

Final Drive: Chain

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tires Front: Dunlop® 21 X 7-10

Front Tire Diameter (in): 21

Front Tire Width (in): 7

Front Rim Diameter (in): 10

Tires Rear: Dunlop® 20 X 10-9

Rear Tire Diameter (in): 20

Rear Tire Width (in): 10

Rear Rim Diameter (in): 9

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 12.3 / 3.25

Seats

Seat Height (mm / in.): 813 / 32

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: No

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: Yes

Steering

Steering Type: Manual

Steering Make: PRO Steering (Polaris Rider Optimized)

Turning Circle: 5.4 feet

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Polaris
