2020 Polaris Scrambler 850 ATV Specs South Africa

2020 Polaris Scrambler 850 - Racing Quad Bikes. Full specs, photos & comparison.

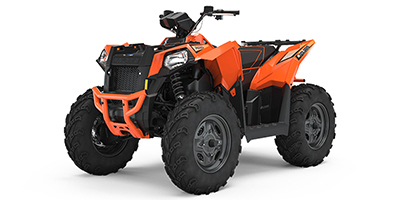

2020 Polaris Scrambler 850 ATV quad bike specs

Polaris Scrambler 850 2020

Make

Polaris

Model

Scrambler

Year

2020

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 850 / 51.87

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 8

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Parallel Twin

Engine Make: ProStar

Displacement To Weight CC: 1.16

Bore Stroke(mm): 87mm x 71.5mm

Bore Stroke(in): 3.43in. x 2.81in.

Compression Ratio: 11:1

Fuel System: Fuel Injected

Fuel System Brand: Mikuni

Carborator Count: 0

Fuel Injector Size MM: 42

Fuel Type: Petrol

Ignition: Electric

Speed Governor: No

Brakes

Brakes Front: Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: Independent Double A-Arm

Suspension - Front Travel (mm / in.): 229 / 9

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Independent Double A-Arm

Suspension Rear - Material: Steel

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 262 / 10.3

Rear Adjustable Rebound Damping: No

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2091 / 82.32

Width (mm / in.): 1230 / 48.6

Height (mm / in.): 1230 / 48.4

Ground Clearance (mm / in.): 290 / 11.5

Wheelbase (mm / in.): 1346 / 53

Dry Weight (Kg / Lbs.): 333 / 735

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Transmission Make: Polaris Variable Transmission (PVT)

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Driveline Make: On-Demand

Diff Lock Location: Rear

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: CST

Tires Front: CST: 26 x 8-14

Front Tire Diameter (in): 26

Front Tire Width (in): 8

Front Rim Diameter (in): 14

Tires Rear: CST: 26 x 10-14

Rear Tire Diameter (in): 26

Rear Tire Width (in): 10

Rear Rim Diameter (in): 14

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 19.9 / 5.25

Racks and Payload

Payload Capacity (Kg / Lbs.): 131 / 290

Storage

Storage Capacity (Kg / Lbs.): 11.3 / 25

Seats

Seat Height (mm / in.): 890 / 35

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lumbar Adjustment: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 680.4 / 1500

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Voltage Meter: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Tachometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Composite

Cargo Bed Tilt: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Radiator Guard: No

Rear Fender: Standard

Shock Cover: No

Steering

Steering Type: Manual

Turning Circle: 7

Performance

Power Output(hp in Kw): 58.2

Horsepower Brake hp: 78

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Polaris
