2006 Suzuki Quad Runner 160 LT-F160 ATV Specs South Africa

2006 Suzuki Quad Runner 160 LT-F160 - Racing Quad Bikes. Full specs, photos & comparison.

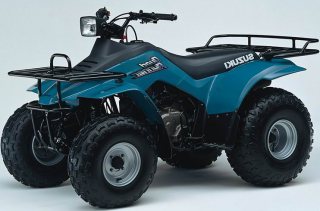

2006 Suzuki Quad Runner 160 LT-F160 ATV quad bike specs

Suzuki Quad Runner 160 LT-F160 2006

Make

Suzuki

Model

Quad Runner

Year

2006

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison
Engine Spec
Engine Detail: 4-Stroke, air-cooled, SOHC, 1-cylinder engine.
Displacement To Weight CC: 158
Bore Stroke(mm): 58.0mm x 60.0mm
Compression Ratio: 9.2:1
Fuel System: MIKUNI VM20SS, single
Fuel System Brand: MIKUNI
Ignition: Electric
Brakes
Brakes Front: Drum
Brakes Rear: Drum
Suspension
Front Suspension: Independent, swing axle, coil spring, oil damped
Suspension Rear: Swingarm, coil spring, oil damped, spring preload, 5-way adjustable.
Dimensions and Weight
Length (mm / in.): 1670 / 65.75
Width (mm / in.): 985 / 38.78
Height (mm / in.): 1000 / 39.37
Ground Clearance (mm / in.): 135 / 5.31
Wheelbase (mm / in.): 1070 / 42.13
Dry Weight (Kg / Lbs.): 162 / 357.15
Transmission (Gearbox) and Final Drive
Transmission: 5-forward constant mesh and 1-reverse
Final Drive: Chain, 84 links
Tires and Rims
Tires Front: AT20 x 7-8H
Tires Rear: AT22 x 10-8H
Fuel
Fuel Tank Capacity (l / gal.): 8.5 / 2.25
Seats
Seat Height (mm / in.): 725 / 28.54
Colours
Colors: Yelow, Black
