2010 Arctic Cat 550 S ATV Specs South Africa

2010 Arctic Cat 550 S - Utility Quad Bikes. Full specs, photos & comparison.

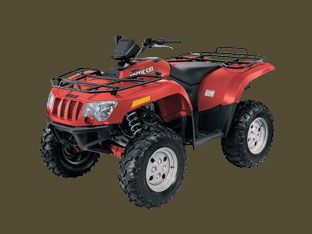

2010 Arctic Cat 550 S ATV quad bike specs

Arctic Cat 550 S 2010

Make

Arctic Cat

Model

550

Year

2010

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison
Engine Spec
Engine Detail: SOHC, 4-stroke, 4-valve
Engine Capacity (cc / Ci ): 545cc / Unknown
Engine Valves: SOHC
Engine Type: 4-stroke
Engine Cooling: Liquid-Cooled with fan
Engine Cylinders: single-cylinder
Bore Stroke(mm): 92mm x 82mm
Brakes
Brakes Front: Hydraulic disc
Brakes Rear: Hydraulic disc
Suspension
Front Suspension: Double A-arm; 10 in. (25.4 cm) travel
Suspension Rear: Double A-arm; 10 in. (25.4 cm) travel
Dimensions and Weight
Length (mm / in.): 2154 / 84.8
Width (mm / in.): 1207 / 47.5
Height (mm / in.): 1219 / 48
Ground Clearance (mm / in.): 279 / 11
Wheelbase (mm / in.): 1270 / 50
Dry Weight (Kg / Lbs.): 314 / 692
Transmission (Gearbox) and Final Drive
Final Drive: 2/4 WD + differential lock 4x4
Tires and Rims
Tires Front: 25 x 8-12
Tires Rear: 25 x 10-12
Fuel
Fuel Tank Capacity (l / gal.): 22 / 5.7
Racks and Payload
Rack Capacity Front (Kg / Lbs.): 45 / 100
Rack Capacity Rear (Kg / Lbs.): 91 / 200
Towing
Towing Capacity (Kg / Lbs.): 476 / 1050
