2006 Yamaha ATV & Quad Bike Specs

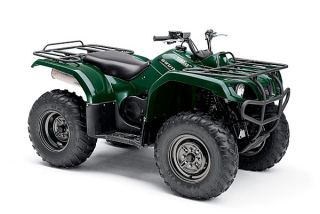

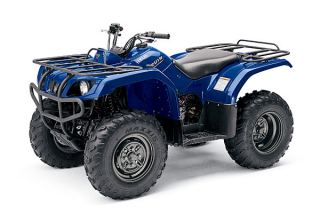

Yamaha Bruin 350 Automatic 2X4 2006

Make

Yamaha

Model

Bruin

Year

2006

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 348cc, 4-stroke Single, Air cooled, Oil cooler with fan, SOHC

Engine Capacity (cc / Ci ): 348 cc / 21.2

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-stroke

Engine Cooling: Air cooled, Oil cooler with fan

Engine Cylinders: Single-cylinder

Engine Braking: All Wheel

Displacement To Weight CC: 0.69

Bore Stroke(mm): 83 mm x 64.5 mm

Bore Stroke(in): 3.27in. x 2.54 in.

Compression Ratio: 9.2:1

Fuel System: Mikuni 33mm BSR

Fuel System Brand: Mikuni

Carburetor Size MM: 33

Carborator Count: 1

Fuel Type: Petrol

Ignition: DC – CDI Electric with auxiliary pull

Speed Governor: No

Brakes

Brakes Front: Dual Hydraulic Discs

Brakes Rear: Fully Sealed Drum

Suspension

Front Suspension: Independant. Double Wishbone, 5-way Preload Adjustment

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 160 / 6.3

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm / 180mm with 5-way Preload Adjustment

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 180.3 / 7.1

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1984 / 78

Width (mm / in.): 1085 / 42.7

Height (mm / in.): 1120 / 44

Ground Clearance (mm / in.): 246.4 / 9.7

Wheelbase (mm / in.): 1231.9 / 48.5

Dry Weight (Kg / Lbs.): 230 / 507

Transmission (Gearbox) and Final Drive

Transmission: Yamaha Ultramatic V-belt with engine braking / F N R

Transmission Make: UltraMatic

Final Drive: 2WD / Shaft

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Shaft

Hi / Low Range: No

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tires Front: AT25 x 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: AT25 x 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 17.2 / 4.5

Storage

Storage Capacity (Kg / Lbs.): 39.9 / 88

Underseat Storage: Standard

Seats

Seat Height (mm / in.): 828 / 32.6

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 499.9 / 1102

Lighting

Lighting: Dual 30W Krypton Multi-reflector Headlights & 21/5W Brake light

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Exterior Covers: Standard

Exterior Guards: Standard

Floor Board Location: Driver

Foot Pegs: Standard

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Turning Circle: 9.8

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Yamaha

Warranty Info: 6 Month (Limited Factory Warranty)
